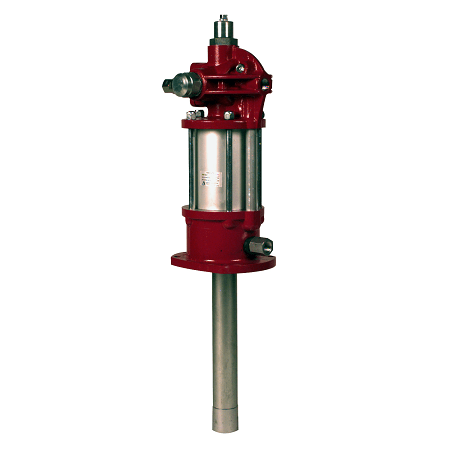

7783-C4 by Alemite | Oil Pump | Pneumatic - Industrial | Drum Size: Stub | Material Inlet: 1-1/2" Female NPTF | Material Outlet: 1/2" Female NPTF

7783-C4 by Alemite | Oil Pump | Pneumatic - Industrial | Drum Size: Stub | Material Inlet: 1-1/2" Female NPTF | Material Outlet: 1/2" Female NPTF

Save $388.32 Save $388.32
$3,494.85
$3,494.85 - $3,494.85
$3,494.85
$3,106.53
$3,106.53 - $3,106.53
$3,106.53

PRODUCT DESCRIPTION

Alemite Oil Pumps - Pneumatic - Industrial
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 7783-C4 Alemite
Applications:
  • Alemite Oil Pumps are ideal for applications where fluids are piped to multiple outlets. Combined with Alemite Hose Reels, Dispensing Valves and Meters, Alemite Oil Pumps deliver motor oils, gear oils, cutting oils, hydraulic oils, machine coolants, automatic transmission fluids and a wide range of petroleum based fluids from tanks, drums, totes and pails.
  • Alemite Oil Pumps can be used for bulk transfer or direct delivery from the original container.
Features:
  • 4-1/4" - 6" diameter air motor.
  • Recommended for pumping distances over 100 feet
  • Includes Air Connector and Quick Detach Air Coupler
  • Requires Bung Adapter, Cover and Muffler (not included, refer to table below)
  • Requires appropriate downtube
  • 3/4" air inlet and outlet

Part Number Drum Size Material Inlet Material Outlet Pump Ratio Delivery Cover Bung Adapter MufflerWeight
7783-A4 55 gallon NA 1/2" NPTF(f) 6:1 10 gpm 323847-4 326750-B1 324170 55 Lb.
7783-C4 Stub 1 1/2" NPTF(f) 1/2" NPTF(f) 6:1 10 gpm Varies with drum size 326750-B1 324170 45 Lb.
7793-A1 55 gallon NA 1/2" NPTF(f) 12:1 6.5 gpm 323847-4 326750-B1 324170 75 Lb.
7793-C Stub 1-1/2" NPTF(f) 1/2" NPTF(f) 12:1 6.5 gpm Varies with drum size 326750-B1 324170 65 Lb.
