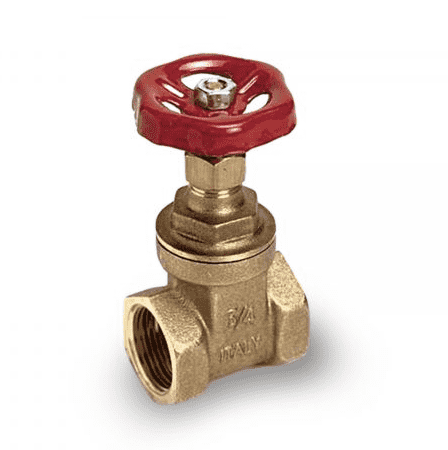

112F00 by RuB Inc. | Gate Valve | 1" Female NPT x 1" Female NPT | Brass | Pack of 8

Save $16.52

$148.68

$148.68 - $148.68

$148.68

$132.16

$132.16 - $132.16

$132.16

RuB Inc. - Gate Valves - S.112 Series - Female NPT x Female NPT - Brass

Package Quantity: 8 Units

Quantity

Specifications for Variant SKU: 112F00 RuB Inc \| 8 \|
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT, 1in Female NPT, Some Ends Match
Material(s):	Brass

Quality:
Suitable for water-works, domestic and agricultural installations Non rising stem suitable to most difficult applications
Body:
Hot forged sand blasted brass body Low pressure drop
Handle:
Red coated steel hand-wheel WARNING: do not exceed reasonable temperature and/or electrical load Zinc plated steel top nut
Threads:
NPT female by female taper threads
Stem:
High performance EPDM stem seal
Working Pressure & Temperature:
150 PSI non-shock cold working pressure +40°F/+200°F WARNING: freezing of the fluid in the installation may severely damage the valve


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	I	L	A	H
112D00	1/2"	1/2"	0.531"	0.354"	1.377"	1.771"	2.677"
112E00	3/4"	3/4"	0.610"	0.354"	1.535"	1.771"	2.677"
112F00	1"	1"	0.748"	0.393"	1.692"	1.968"	3.149"
112G00	1-1/4"	1-1/4"	1.062"	0.393	1.889"	2.165"	3.385"
112H00	1-1/2"	1-1/2"	1.299"	0.433"	2.125"	2.362"	4.212"
112I00	2"	2"	1.732"	0.472"	2.283"	2.755"	5.275"
112L00	2-1/2"	2-1/2"	1.850"	0.511"	2.480"	3.149"	5.629"
112M00	3"	3"	2.362"	0.511"	2.755"	3.937"	6.889"
112N00	4"	4"	2.834"	0.590"	3.149"	3.937"	7.952"

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
