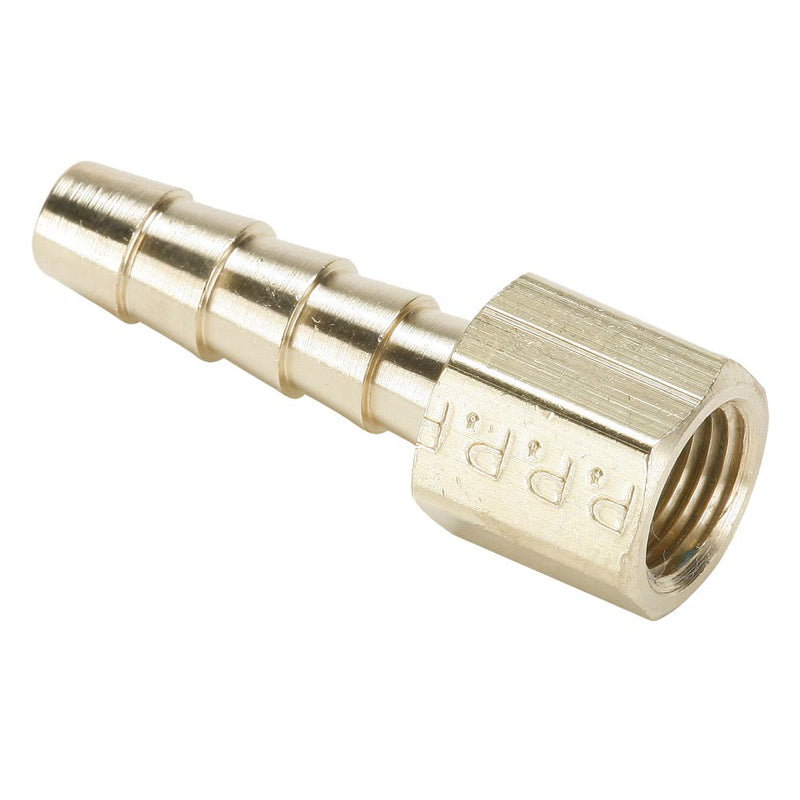

126HBL-8-8 by Parker | Hose Barb Fittings | 1/2" Hose Barb x 1/2" Female Pipe Thread | 1" Hex | 1.73" Length | Straight | Brass | Pack of 25

126HBL-8-8 by Parker | Hose Barb Fittings | 1/2" Hose Barb x 1/2" Female Pipe Thread | 1" Hex | 1.73" Length | Straight | Brass | Pack of 25

Save $91.33 Save $91.33
$228.32
$228.32 - $228.32
$228.32
$136.99
$136.99 - $136.99
$136.99

by Parker Hannifin
Hose Barb Fittings:Hose Barb to Female Pipe 126HBL

Package Quantity: 25 Units

Specifications for Variant SKU: 126HBL-8-8 Parker | 25 |
Series: 126HBL Series
Shape (Orientation): Straight
Material(s): Brass
Product Features:
  • All brass construction
  • Fluorocarbon O-rings
  • NPTF, SAE straight thread, metric thread ends
  • Reusable
  • Clamp required
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
Temperature Range: -40° to +160° F (-40° to +71.1° C)
Pressure Range: Up to 150 PSI (10.3 bar)
Part Number ID Hose Size Pipe Thread Hex (C) L M OD Flow Diameter (D)
126HBL-4-2 1/4" 1/8" 1/2" 1.47" .97" .290" .187"
126HBL-4-4 1/2" 1/2" 11/16" 1.66" .97" .290" .187"
126HBL-5-4 5/16" 1/4" 11/16" 1.58" .97" .353" .250"
126HBL-6-2 3/8" 1/8" 1/2" 1.47" .97" .415" .281"
126HBL-6-4 3/8" 1/4" 11/16" 1.66" .97" .415" .281"
126HBL-6-6 3/8" 3/8" 13/16" 1.69" .97" .530" .375"
126HBL-8-6 1/2" 3/8" 13/16" 1.69" .97" .530" .375"
126HBL-8-8 1/2" 1/2" 1" 1.73" .97" .530" .375"
126HBL-12-12 3/4" 3/4" 1-1/4" 1.92" .97" .790" .562"
