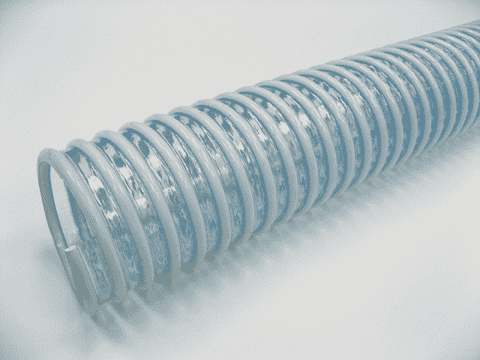

3074-0600-100 by Jason Industrial | 3074 Series | HD Sub-Zero Cold Weather Suction Hose | 21 PSI | 6" ID | 6.73" OD | White/Clear | PVC | 100ft

3074-0600-100 by Jason Industrial | 3074 Series | HD Sub-Zero Cold Weather Suction Hose | 21 PSI | 6" ID | 6.73" OD | White/Clear | PVC | 100ft

Save $16.30 Save $16.30
$1,686.97
$1,686.97 - $1,686.97
$1,686.97
$1,670.67
$1,670.67 - $1,670.67
$1,670.67

Jason Industrial Inc. Hose - Water Hose - 3074 HD Sub-Zero Cold Weather Clear PVC Suction Hose - White/Clear

Package Quantity: 100 FT

Specifications for Variant SKU: 3074-0600-100 Jason | 100 |
Series: 3074 Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 6in
Outer Diameter: 6.73in
Tubing Construction: PVC
Special Properties: Outer Helix Protection
Application: Heavy duty water suction and transfer for rental, construction and trash pumps in sub-zero weather conditions SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Clockwise PVC Helix Cover: N/A
Temperature Range: -40 deg F (-40 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: N/A
Other Features:
  • Clear visual flow
  • -40 deg. F cold weather resistance
  • Sub-zero flexibility
  • Easy to drag with "Go-Glide" external clockwise PVC helix
  • Vacuum up to 29" of Hg
Part Number I.D. O.D. Reinforcement Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
3074-0100-100 1" 25.40mm 1.22" 30.99mm PVC Helix 43 PSI 2.97 BAR 29.0 inHg 0.15 lb./ft. 0.22 KG/m 2.00" 50.80mm 100ft
3074-0125-100 1-1/4" 31.75mm 1.48" 37.59mm PVC Helix 36 PSI 2.48 BAR 29.0 inHg 0.18 lb./ft. 0.27 KG/m 2.50" 36.50mm 100ft
3074-0150-100 1-1/2" 38.10mm 1.82" 46.23mm PVC Helix 36 PSI 2.48 BAR 29.0 inHg 0.28 lb./ft. 0.42 KG/m 2.50" 63.50mm 100ft
3074-0200-100 2" 50.80mm 2.35" 59.69mm PVC Helix 36 PSI 2.48 BAR 29.0 inHg 0.44 lb./ft. 0.65 KG/m 3.00" 76.20mm 100ft
3074-0250-100 2-1/2" 63.50mm 2.87" 72.90mm PVC Helix 28 PSI 1.93 BAR 29.0 inHg 0.60 lb./ft. 0.89 KG/m 5.00" 127.00mm 100ft
3074-0300-100 3" 76.20mm 3.50" 88.90mm PVC Helix 28 PSI 1.93 BAR 29.0 inHg 0.85 lb./ft. 1.26 KG/m 6.00" 152.40mm 100ft
3074-0400-100 4" 101.60mm 4.63" 117.60mm PVC Helix 21 PSI 1.45 BAR 29.0 inHg 1.34 lb./ft. 1.99 KG/m 9.00" 228.60mm 100ft
3074-0500-100 5" 127.00mm 5.63" 143.00mm PVC Helix 21 PSI 1.45 BAR 28.0 inHg 2.20 lb./ft. 3.27 KG/m 10.00" 254.00mm 100ft
3074-0600-100 6" 152.40mm 6.73" 170.94mm PVC Helix 21 PSI 1.45 BAR 28.0 inHg 2.72 lb./ft. 4.05 KG/m 11.00" 279.40mm 100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
