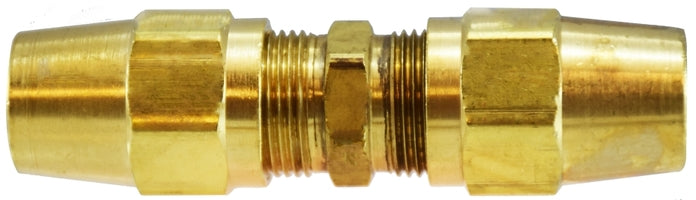

38179 (38-179) Midland DOT Air Brake Fitting (Copper Tubing) - Union - 1/4" Tube OD - Brass

38179 by Midland | DOT Air Brake Fitting | Copper Tubing | Union | 1/4" Tube OD | Brass

Save $0.40

$3.63

$3.63 - $3.63

$3.63

$3.23

$3.23 - $3.23

$3.23

Midland Industries
Brass Fitting - D.O.T. Air Brake Fitting (Copper Tubing) - Union - Brass

Inventory @ Manufacturers Warehouse: 9 Units

Quantity

Specifications for Variant SKU: 38179 Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Tube Compression, 1/4in Tube Compression, Some Ends Match
Material(s):	Brass
Applicable Specs & Approvals:	D.O.T. FMVSS 571.106, Applicable SAE Standards

SPECIFICATIONS

SAE Rating:	SAE# 120101BA	Tolerance:	+/- .02 on all dimensions

Crossover Series:
62AB	AB62	1362


Part Number	Tube OD	A	Hex	Approx. Weight (Lbs.)
38179 (38-179)	1/4"	0.81"	0.44"	0.08
38180 (38-180)	3/8"	1.10"	0.56"	0.14
38181 (38-181)	1/2"	1.07"	0.69"	0.24
38182 (38-182)	5/8"	1.41"	0.81"	0.34
38183 (38-183)	3/4"	-	-	0.54

Dimension data can change without notice.

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
