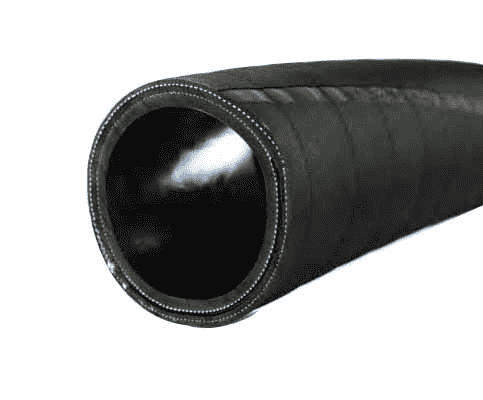

4429-0400-100 by Jason Industrial | 4429 Series | Hot Tar & Asphalt Suction Hose | 150 PSI | 4" ID | 4.80" OD | Black | 100ft

Save $42.31

$4,235.64

$4,235.64 - $4,235.64

$4,235.64

$4,193.33

$4,193.33 - $4,193.33

$4,193.33

Jason Industrial Inc. Hose - Material Handling Hose - 4429 Hot Tar & Asphalt Suction Hose - 150 PSI - Black

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: 4429-0400-100 Jason \| 100 \|
Series:	4429 Series
Hose Color(s):	Black
Internal Diameter:	4in
Outer Diameter:	4.80in
Tubing Construction:	Elastomer Blend
Cover Construction:	Elastomer Blend
Special Properties:	Static Dissipating Cover

SPECIFICATIONS

Other Features:
Application:	Hose is specially designed for conveying hot tar and asphalt	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Special Elastomer Compound, Black, Smooth, Synthetic Oil, Abrasion and Heat Resistant
Reinforcement:	Two or Four-ply High Tensile Cord, Steel Wire Helix	Cover:	Blend of Synthetic Elastomer Compounds, Black and Smooth, Anti-static
Temperature Range:	-22 deg. F (-30 deg. C) to +356 deg. F (+180 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Branding:	Jason logo 4429 HOT ASPHALT 356°F/180°C 150 PSI 4:1. Embossed brand
Cover is resistant to weathering and abrasion Cover is also anti-static, oil and heat resistant Special tube compound is heat (up to 356 deg. F) and abrasion resistant All sizes are full vacuum

Part Number	I.D.		O.D.		Reinforcement Plies	Max. Working Press. @ 68 deg. F		Vacuum @ 68 deg. F	Weight		Min. Bend Radius		Standard Length
	in.	mm	in.	mm		PSI	BAR	inHg	lb./ft.	KG/m	in.	mm	ft
Uncoupled
4429-0200-100	2"	50.80mm	2.72"	69.00mm	2	150 PSI	10.35 BAR	29.0 inHg	1.77 lb./ft.	2.65 KG/m	10.00"	254.00mm	100ft
4429-0300-100	3"	76.20mm	3.78"	96.00mm	2	150 PSI	10.35 BAR	29.0 inHg	2.82 lb./ft.	4.21 KG/m	15.00"	380.00mm	100ft
4429-0400-100	4"	101.60mm	4.80"	122.00mm	4	150 PSI	10.35 BAR	29.0 inHg	3.82 lb./ft.	5.70 KG/m	20.00"	510.00mm	100ft

Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
