A1661-06X400 Kuri-Tec by Kuriyama | A1661 Series | Blend Reinforced Spray Hose | 3/8" ID | .650" OD | 600 PSI | PVC/Polyurethane | 400ft Length

Save $54.52

$545.19

$545.19 - $545.19

$545.19

$490.67

$490.67 - $490.67

$490.67

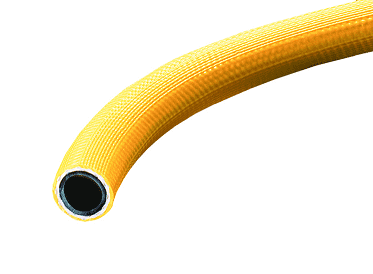

Kuriyama Kuri Tec® A1661 Series 600 PSI PVC/Polyurethane Blend Reinforced Spray Hose - Yellow Unique PVC/polyurethane blended core provides excellent resistance to hydrocarbon-based lawn care and pest control chemicals. Reinforced with high tensile strength yarn. PVC ribbed cover provides abrasion resistance.

Package Quantity: 400 FT

Quantity

Specifications for Variant SKU: A1661-06X400 Kuriyama \| 400 \|
Brand:	Kuri Tec
Series:	A1661 Series
Hose Color(s):	Yellow
Internal Diameter:	0.375in
Outer Diameter:	0.65in
Tubing Construction:	PVC/Polyurethane Blend
Cover Construction:	Ribbed PVC
Special Properties:	Pin Pricked Hose Cover, Ribbed Hose Cover

SPECIFICATIONS

Other Features:
Application:	Pest control spraying, Agricultural spraying, Commercial weed spraying	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black PVC/polyurethane blend.
Reinforcement:	High tensile strength yarn two-pass spiral construction.	Cover:	Ribbed PVC
Temperature Range:	+15 deg. F (-10 deg. C) to +160 deg. F (+70 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	N/A
Extremely tough and kink resistant. PVC/polyurethane blended core - provides better chemical resistance than comparable all-PVC hoses. Ribbed cover provides excellent abrasion-resistance. 600 PSI working pressure. Pin-pricked cover vents vapor - helps prevent ballooning. Silicone-free. One-piece lengths.

Part Number	Nominal ID		Nominal OD		Working Pressure		Standard Lengths	Approx Weight per Pkg
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)	Coil
A1661-06X300	3/8"	9.5mm	.650"	16.5mm	600 PSI	350 PSI	300 ft	41 lbs.
A1661-06X400	3/8"	9.5mm	.650"	16.5mm	600 PSI	350 PSI	400 ft	54 lbs.
A1661-08X300	1/2"	12.7mm	.790"	20.1mm	600 PSI	350 PSI	300 ft	57 lbs.
A1661-08X400	1/2"	12.7mm	.790"	20.1mm	600 PSI	350 PSI	400 ft	76 lbs.
A1661-10X300	5/8"	15.9mm	1.030"	26.2mm	600 PSI	300 PSI	300 ft	96 lbs.
A1661-12X300	3/4"	19.1mm	1.170"	29.7mm	600 PSI	300 PSI	300 ft	126 lbs.

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Note: Use of hydraulic or reusable-type fittings are not recommended for coupling Kuri Tec® hose products. Hose claims involving use of these fittings will be disallowed.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
