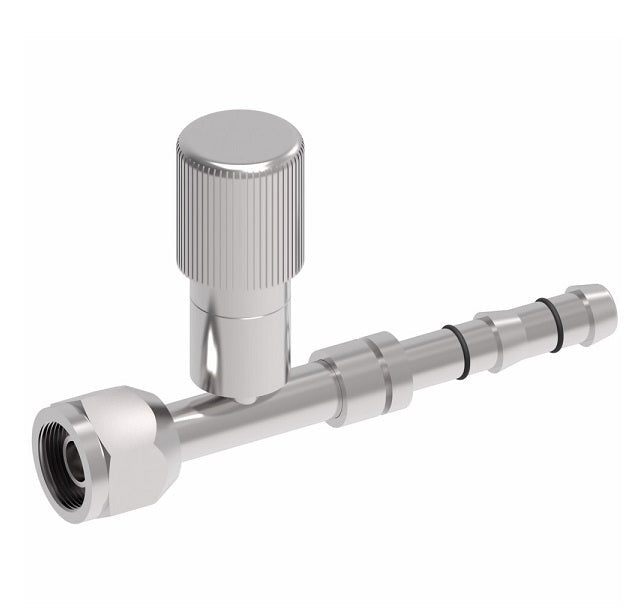

FJ3053-0806S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -06 Hose Barb | Steel
FJ3053-0806S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -06 Hose Barb | Steel
FJ3053-0806S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -06 Hose Barb | Steel
FJ3053-0806S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -06 Hose Barb | Steel

FJ3053-0806S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a High Side Port | A/C Refrigeration Fitting | -08 Female O-Ring Short Pilot x -06 Hose Barb | Steel

$119.81 - $119.81
$119.81
$119.81 - $119.81
$119.81

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring Straight (Short Pilot) with R134a High Side Port - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3053-0806S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 1/2in Female O-Ring Short Pilot, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3053-0606S 5/8-18 -06 3.91" 2.10" 0.63" 0.75" FF14171 22546-11 FF90178-11
FJ3053-0806S 3/4-16 -06 4.06" 2.26" 0.63" 0.88" FF14171 22546-13 FF90178-13
FJ3053-0808S 3/4-16 -08 4.09" 2.16" 0.63" 0.88" FF14172 22546-13 FF90178-13
FJ3053-0810S 3/4-16 -10 4.09" 2.16" 0.63" 0.88" FF14173 22546-13 FF90178-13
