GW50-12x16 Couplamatic GW Series Coupling - Code 61 Split Flange - 45° Bend - 3/4" Hose ID - 1" Flange Size

GW50-12x16 by Couplamatic | GW Series Coupling | 3/4" Hose ID x 1" Split Flange Size | Code 61 | 45° Elbow | Trivalent Zinc Plating

Save $3.04 Save $3.04
$27.38
$27.38 - $27.38
$27.38
$24.34
$24.34 - $24.34
$24.34

Couplamatic Systems Inc.
GW Series - Code 61 Split Flange - 45° Bend
Specifications for Variant SKU: GW50-12x16 Couplamatic
Series: GW Series
Shape (Orientation): 45 Degree
Ends Configuration: 1in Code 61 Flange, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

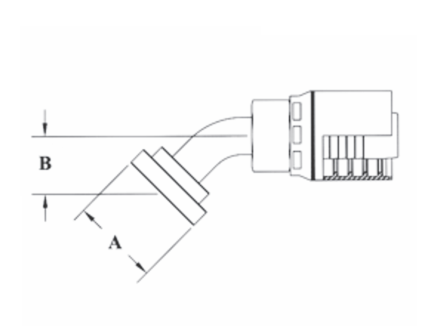

Part Number Hose ID Flange Size A-Dia Inches B-Drop Inches Cross Reference Part Numbers
Weatherhead 430U
GW50-8x8 1/2" 1/2" 1.19" 0.78" 43008U-G41
GW50-8x12 1/2" 3/4" 1.50" 0.82" 43008U-G42
GW50-12x12 3/4" 3/4" 1.50" 1.00" 43012U-G42
GW50-12x16 3/4" 1" 1.75" 1.00" 43012U-G46
GW50-16x16 1" 1" 1.75" 1.12" 43016U-G46
GW50-16x20 1" 1-1/4" 2.00" 1.12" 43016U-G50
GW50-20x20 1-1/4" 1-1/4" 2.00" 1.15" 43020U-G50
GW50-20x24 1-1/4" 1-1/2" 2.38" 1.50" 43020U-G54
GW50-24x24 1-1/2" 1-1/2" 2.38" 1.41" 43024U-G54
GW50-32x32 2" 2" 2.81" 2.08" 43032U-G62

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
