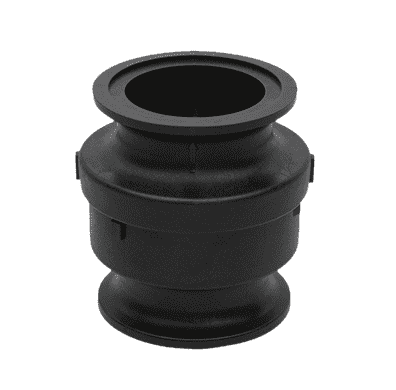

MCV300 Banjo Polypropylene Flanged Check Valve - 3" - Flow: 3" - 150 PSI

MCV300 by Banjo | Manifold Flange Connections for 3" Flanged Check Valve with 5 Ibs. | Flow: 3" | Gasket: EPDM | 200 PSI | Polypropylene

Save $4.33 Save $4.33
$38.93
$38.93 - $38.93
$38.93
$34.60
$34.60 - $34.60
$34.60

Banjo Manifold Flange Connections - Manifold Fittings - Flanged Check Valve - Polypropylene

Specifications for Variant SKU: MCV300 Banjo
Shape (Orientation): Straight
Ends Configuration: 3in Standard Port Manifold Flange, 3in Standard Port Manifold Flange, Some Ends Match
Material(s): Polypropylene
Seal Material(s): EPDM
Features:
  • Quick and easy assembly
  • Positive seals
  • Easy on/off hose connections
  • 360° orientation
Materials:
  • Glass reinforced polypropylene.
Part Number Description Cracking
Pressure
PSI		 Max
PSI
MCV100 1" Flange Check Valve 1 PSI 300 PSI
MCV200 2" Flange Check Valve 0.5 PSI 300 PSI
MCV100V 1" Manifold Check Valve 1 PSI 300 PSI
MCV221 2" Full Port Flanged Check Valve >0.5 PSI 200 PSI
MCV300 3" Flange Check Valve With 5 LB Spring 1.5 PSI 200 PSI
MCV301 3" Flange Check Valve With 1/2" LB Spring >0.5 PSI -
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
