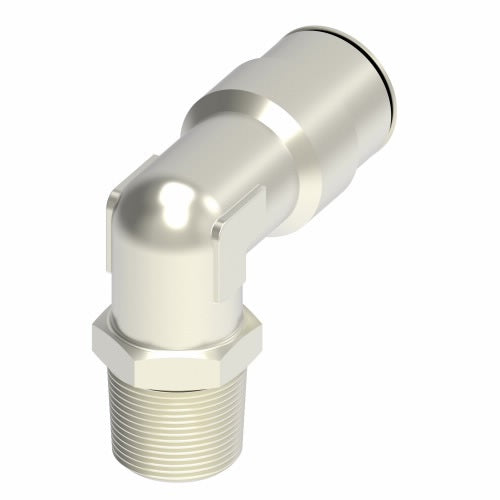

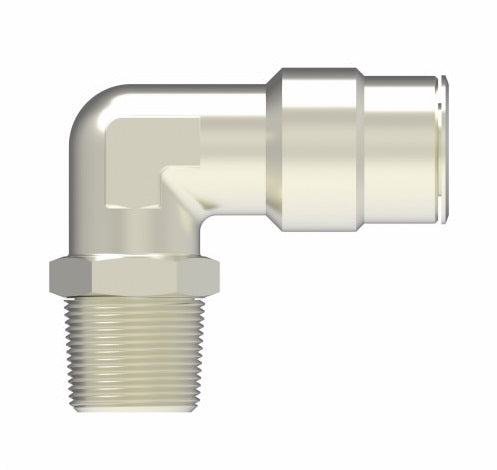

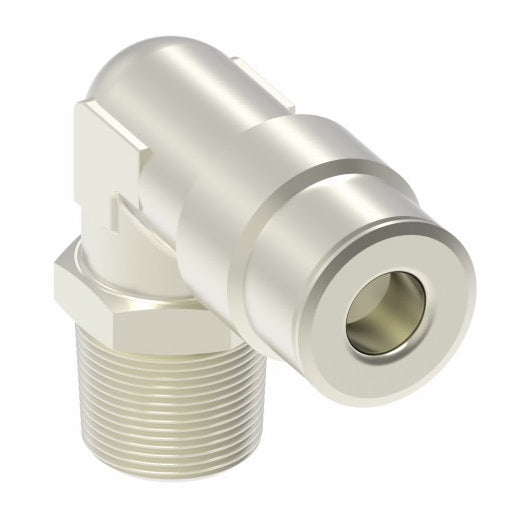

1169X4S by Danfoss | Push to Connect Adapter | Swivel Male 90° Elbow | 1/4" Tube OD x 1/8" Male NPTF | Nickel Plated Brass

1169X4S by Danfoss | Push to Connect Adapter | Swivel Male 90° Elbow | 1/4" Tube OD x 1/8" Male NPTF | Nickel Plated Brass Pack of 10

$95.80 - $95.80

$95.80

$95.80 - $95.80

$95.80

Aeroquip® by Danfoss
Push to Connect Adapter - Swivel Male Pipe

Package Quantity: 10 Units

Specifications for Variant SKU: 1169X4S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	1/4in Push-to-Connect, 1/8in Male NPTF
Material(s):	Nickel Plated Brass
Special Properties:	Swivel
Compatible with the following Series:	PT230 Series \| TP160 Series \| PT240 Series

Applications:
Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
Ease of assembly. No tools required, reusability of connectors and the time savings of assembly and disassembly. Swivel for installation purposes only.
Used With:
PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
Brass, Nickel Plated O-Ring: Buna-N
Pressure:
Up to 250 psi depending on tube size.
Temperature Range:
When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
Fittings rated at 29.5 inches of mercury vacuum.


Nickel Plated Brass Part Number	Tube O.D.	Male Pipe Thread	C	E	F	H	M	SW	SW1
1169X2AS	1/8"	10-32 UNF	0.24"	0.53"	0.39"	0.18"	0.83"	9mm	8mm
1169X2S	1/8"	1/8"	0.14"	0.65"	0.35"	0.32"	0.69"	0.32"	0.47"
1169X2X4S	1/8"	1/4"	0.14"	0.69"	0.35"	0.47"	0.70"	0.32"	0.55"
1169X2.5AS	5/32"	10-32 UNF	0.24"	0.53"	0.39"	0.18"	0.79"	9mm	8mm
1169X2.5S	5/32"	1/8"	0.14"	0.65"	0.35"	0.32"	0.69"	0.32"	0.47"
1169X4S	1/4"	1/8"	0.16"	0.67"	0.50"	0.32"	0.79"	0.35"	0.47"
1169X4X4S	1/4"	1/4"	0.16"	0.71"	0.50"	0.47"	0.79"	0.35"	0.55"
1169X4X6S	1/4"	3/8"	0.16"	0.67"	0.50"	0.47"	0.79"	0.35"	0.75"
1169X5S	5/16"	1/8"	0.20"	0.71"	0.55"	0.32"	0.87"	0.43"	0.47"
1169X2.5X4S	5/32"	1/4"	0.24"	0.87"	0.39"	0.47"	0.83"	9mm	14mm
1169X5X4S	5/16"	1/4"	0.20"	0.75"	0.55"	0.47"	0.87"	0.43"	0.55"
1169X5X6S	5/16"	3/8"	0.20"	0.73"	0.55"	0.47"	0.87"	0.43"	0.75"
1169X6X2S	3/8"	1/8"	0.26"	0.81"	0.65"	0.32"	1.04"	0.51"	0.55"
1169X6S	3/8"	1/4"	0.25"	0.85"	0.65"	0.47"	1.04"	0.51"	0.55"
1169X6X6S	3/8"	3/8"	0.26"	0.83"	0.65"	0.47"	1.04"	0.51"	0.75"
1169X6X8S	3/8"	1/2"	0.26"	0.91"	0.65"	0.61"	1.04"	0.51"	0.87"
1169X8X4S	1/2"	1/4"	0.32"	0.91"	0.77"	0.47"	1.12"	0.59"	0.67"
1169X8S	1/2"	3/8"	0.32"	0.87"	0.77"	0.47"	1.12"	0.59"	0.75"
1169X8X8S	1/2"	1/2"	0.32"	0.95"	0.77"	0.61"	1.12"	0.59"	0.87"
