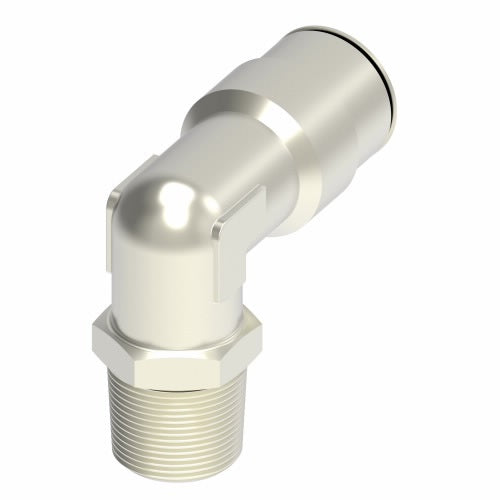

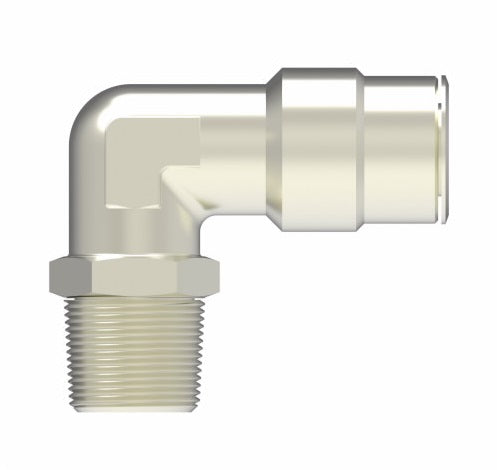

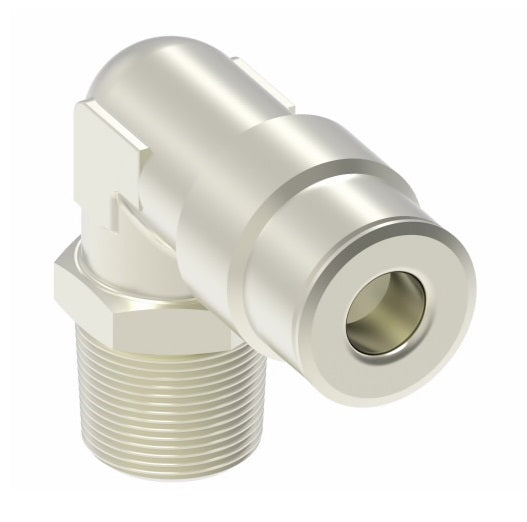

1169X5S by Danfoss | Push to Connect Adapter | Swivel Male 90° Elbow | 5/16" Tube OD x 1/8" Male NPTF | Nickel Plated Brass
1169X5S by Danfoss | Push to Connect Adapter | Swivel Male 90° Elbow | 5/16" Tube OD x 1/8" Male NPTF | Nickel Plated Brass
1169X5S by Danfoss | Push to Connect Adapter | Swivel Male 90° Elbow | 5/16" Tube OD x 1/8" Male NPTF | Nickel Plated Brass
1169X5S by Danfoss | Push to Connect Adapter | Swivel Male 90° Elbow | 5/16" Tube OD x 1/8" Male NPTF | Nickel Plated Brass

1169X5S by Danfoss | Push to Connect Adapter | Swivel Male 90° Elbow | 5/16" Tube OD x 1/8" Male NPTF | Nickel Plated Brass

$12.15 - $12.15
$12.15
$12.15 - $12.15
$12.15

Aeroquip® by Danfoss
Push to Connect Adapter - Swivel Male Pipe
Specifications for Variant SKU: 1169X5S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/16in Push-to-Connect, 1/8in Male NPTF
Material(s): Nickel Plated Brass
Special Properties: Swivel
Compatible with the following Series: PT230 Series  |   TP160 Series  |   PT240 Series
Applications:
  • Compressed air, pneumatic instrumentation, circuit, lubricant and cooling lines.
Advantages:
  • Ease of assembly.
  • No tools required, reusability of connectors and the time savings of assembly and disassembly.
  • Swivel for installation purposes only.
Used With:
  • PT230 and TP160 nylon, and PT240 Polyethylene tubing.
Material:
  • Brass, Nickel Plated
  • O-Ring: Buna-N
Pressure:
  • Up to 250 psi depending on tube size.
Temperature Range:
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Vacuum:
  • Fittings rated at 29.5 inches of mercury vacuum.
Nickel Plated Brass
Part Number 		Tube O.D. Male Pipe Thread C E F H M SW SW1
1169X2AS 1/8" 10-32 UNF 0.24" 0.53" 0.39" 0.18" 0.83" 9mm 8mm
1169X2S 1/8" 1/8" 0.14" 0.65" 0.35" 0.32" 0.69" 0.32" 0.47"
1169X2X4S 1/8" 1/4" 0.14" 0.69" 0.35" 0.47" 0.70" 0.32" 0.55"
1169X2.5AS 5/32" 10-32 UNF 0.24" 0.53" 0.39" 0.18" 0.79" 9mm 8mm
1169X2.5S 5/32" 1/8" 0.14" 0.65" 0.35" 0.32" 0.69" 0.32" 0.47"
1169X4S 1/4" 1/8" 0.16" 0.67" 0.50" 0.32" 0.79" 0.35" 0.47"
1169X4X4S 1/4" 1/4" 0.16" 0.71" 0.50" 0.47" 0.79" 0.35" 0.55"
1169X4X6S 1/4" 3/8" 0.16" 0.67" 0.50" 0.47" 0.79" 0.35" 0.75"
1169X5S 5/16" 1/8" 0.20" 0.71" 0.55" 0.32" 0.87" 0.43" 0.47"
1169X2.5X4S 5/32" 1/4" 0.24" 0.87" 0.39" 0.47" 0.83" 9mm 14mm
1169X5X4S 5/16" 1/4" 0.20" 0.75" 0.55" 0.47" 0.87" 0.43" 0.55"
1169X5X6S 5/16" 3/8" 0.20" 0.73" 0.55" 0.47" 0.87" 0.43" 0.75"
1169X6X2S 3/8" 1/8" 0.26" 0.81" 0.65" 0.32" 1.04" 0.51" 0.55"
1169X6S 3/8" 1/4" 0.25" 0.85" 0.65" 0.47" 1.04" 0.51" 0.55"
1169X6X6S 3/8" 3/8" 0.26" 0.83" 0.65" 0.47" 1.04" 0.51" 0.75"
1169X6X8S 3/8" 1/2" 0.26" 0.91" 0.65" 0.61" 1.04" 0.51" 0.87"
1169X8X4S 1/2" 1/4" 0.32" 0.91" 0.77" 0.47" 1.12" 0.59" 0.67"
1169X8S 1/2" 3/8" 0.32" 0.87" 0.77" 0.47" 1.12" 0.59" 0.75"
1169X8X8S 1/2" 1/2" 0.32" 0.95" 0.77" 0.61" 1.12" 0.59" 0.87"
