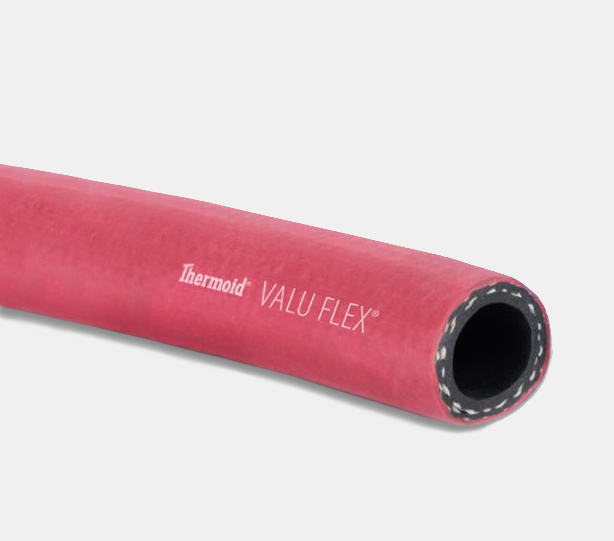

00114506200 Thermoid 200 PSI Valuflex/GS Red Multipurpose Air and Water Hose 3/8" ID

00114506200 by Thermoid | Valuflex/GS Multipurpose Air and Water Hose | 3/8" ID | Red | 200 PSI

$1.02 - $715.56
$1.02
$0.99
$0.99 - $690.67
$0.99



Valuflex/GS is one of the finest multipurpose air and water hose available, anywhere. Red Valuflex provides job/color coding possibilities for safety and other considerations. Valuflex is a very economical general service air and water hose. It can be used in numerous industrial, agricultural and construction applications where oil is not a factor. Valuflex is easy to handle and very flexible due to its multi-spiral layers of durable reinforcing polyester yarn. Available in a wide variety of sizes, Valuflex provides constant working pressures of 150, 200, 250, or 300 psi. It has an EPDM tube and cover that resists abrasion, heat and ozone. This hose is not for use as a steam hose.
Specifications for Variant SKU: 00114506200 Thermoid
Brand: Valuflex
Series: GS Red Multipurpose Air and Water Hose
Hose Color(s): Red
Internal Diameter: 0.375in
Outer Diameter: 0.69in
Tubing Construction: EPDM
Cover Construction: EPDM

SPECIFICATIONS

Application: Valuflex is a very economical general service air and water hose. SAE Rating: N/A
Other Ratings: N/A Tube: EPDM Synthetic Rubber
Reinforcement: Spiral polyester yarn Cover: EPDM Synthetic Rubber
Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg.) Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
N/A
Part Number Inside Diameter Outside Diameter Reinforcement Spirals Operating Pressure (PSI) Min. Bend Radius Weight (Lbs/Ft)
00114504100 .25" .49" 2 150 1.5" 0.09
00114504200 .25" .49" 2 200 1.5" .09
00114504300 .25" .56" 4 250 1.5" .12
00114504400 .25" .62" 4 300 1.5" .16
00114505200 .3125" .58" 2 200 2.0" .12
00114505400 .3125" .62" 4 300 2.0" .14
00114506100 .375" .68" 2 150 2.25" .16
00114506200 .375" .68" 2 200 2.25" .16
00114506251 .375" .68" 2 200 2.25" .16
00114506300 .375" .69" 4 250 2.25" .17
00114506400 .375" .71" 4 300 2.25" .18
00114506451 .375" .71" 4 300 2.25" .18
00114508100 .5" .81" 2 150 3.0" .20
00114508200 .5" .81" 2 200 3.0" .25
00114508300 .5" .84" 4 250 3.0" .25
00114508400 .5" .84" 4 300 3.0" .25
00114510100 .625" .93" 2 150 3.75" .24
00114510200 .625" .93" 4 200 3.75" .30
00114510400 .625" 1.00" 4 300 3.75" .30
00114512100 .75" 1.12" 2 150 4.50" .34
00114512151 .75" 1.12" 2 150 4.50" .34
00114512200 .75" 1.15" 4 200 4.50" .38
00114512251 .75" 1.15" 4 200 4.50" .38
00114512500 .75" 1.15" 4 250 4.50" .38
00114512550 .75" 1.15" 4 250 4.50" .38
00114512400 .75" 1.15" 4 300 4.50" .41
00114512451 .75" 1.15" 4 300 4.50" .41
00114516200 1" 1.37" 4 150 7.0" .43
00114516300 1" 1.37" 4 200 7.0" .51
00114516400 1" 1.37" 4 300 7.0" .51
00114520200 1.25" 1.75" 4 200 8.750" .81
00114524200 1.50" 2.0" 4 200 10.50" .95
00114532200 2.0" 2.55" 4 200 14.0" 1.13

Bulk / By the Foot : We sell hose in Bulk Lengths unless you agree to purchase at a by the foot price as listed above in an options selector. This means we make every effort to provide exact single lengths, however with manufacturer guidelines on bulk hose, your order may come in multiple lengths and may be plus or minus 10% of your bulk order. If you require ONE length in a specific length you must specify by the drop down selector that you will be paying a premium for a single length. There are no exceptions to the bulk guidelines and all prices listed on our website are in bulk price. By ordering through our website you agree that you have read, fully understand and agree to these terms and conditions.

Thermoid

Thermoid

Established in 1883, Thermoid produces one of the broadest lines of industrial rubber products available anywhere in the world. Made in the USA, our industrial hose products are selected and used by thousands of industrial customers and OEMs around the world.
