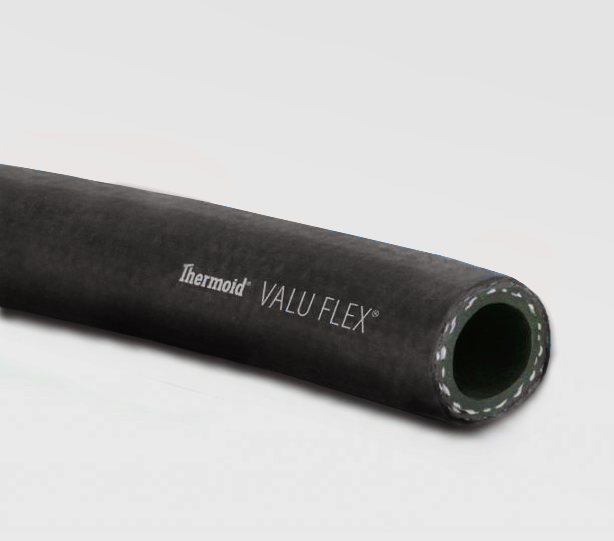

00114632200 Thermoid 200 PSI Valuflex/GS Black Multipurpose Air and Water Hose 2" ID

00114632200 by Thermoid | Valuflex/GS Multipurpose Air and Water Hose | 2" ID | Black | 200 PSI

$14.42 - $3,605.55
$14.42
$8.99
$8.99 - $2,246.67
$8.99

Thermoid
Valu Flex® | Valuflex/GS Multipurpose Air and Water Hose

Valu Flex® is one of the most versatile general service air and water hoses available today. Hoses are lightweight, flexible, and resists abrasion, heat and ozone, making them useful in various applications.
Specifications for Variant SKU: 00114632200 Thermoid
Brand: Valuflex
Series: GS Black Multipurpose Air and Water Hose
Hose Color(s): Black
Internal Diameter: 2in
Outer Diameter: 2.55in
Tubing Construction: EPDM
Cover Construction: EPDM
Compatible with the following Series: King Crimp FJIC Series  |   Domestic Cam & Groove  |   Global Cam & Groove  |   DF-Series  |   BR-Series  |   102 Series  |   103 Series  |   104 Series  |   143 Series  |   144 Series  |   145 Series  |   588 Series  |   585 Series  |   King Combination Knurled NPT  |   King Combination NPT  |   King Combination NPT Reducer  |   Global Air King Chicago
Multipurpose Air & Water Hose

Thermoid Valuflex/GS™ Series

A general service EPDM air and water hose with spiral polyester yarn reinforcement — easy to route and coil, abrasion- and weather-resistant, and rated to 212°F at 200 or 300 PSI working pressure.

✓

EPDM Tube & Cover

Heat, ozone & weather resistant

☰

Spiral Yarn Reinforced

Easier to route, coil & handle

♦

200–300 PSI

Working pressure options

⚙

−40°F to 212°F

Wide temperature range

★

Made in USA

Domestically manufactured

1

What is this product used for?
  • General service compressed air
  • General service water
  • Air & water transfer lines
  • Shop and utility air
2

What are the key specifications?
Tube

EPDM — ARPM Class C, heat resistant

Cover

EPDM — abrasion, ozone & weather resistant

Reinforcement

Spiral polyester yarn

Temperature Range

−40°F to +212°F (−40°C to +100°C)

Working Pressure

200 or 300 PSI by size & construction

Inside Diameters

1/4" through 2"

Colors

Black, Red

Branding

Thermoid Valu Flex · Size · PSI WP · Made In USA · date/time stamp

3

What are the main product features?
  • Abrasion, heat, ozone & weather resistant — the EPDM tube and cover stand up to demanding outdoor and shop service.
  • Spiral polyester yarn reinforcement — easier to route, coil and handle, and less prone to premature failure under torque than braided hose.
  • Pressureless cure system — minimal cast (natural curvature) that extends the life of the rubber compounds.
  • Air mandrel manufacturing — no internal lubricant contamination of the bore, so there is no need to flush the hose before use.
4

Which sizes or configurations are available?

Available in Black and Red, from 1/4" to 2" inside diameter, in 200 and 300 PSI working-pressure constructions. Select a part number for that size.

Part Number Inside Dia. Outside Dia. Spirals Working Pressure (PSI) Min. Bend Radius Weight (lbs/ft)
Valuflex/GS Series — Black
00114604200 .25" .49" 2 200 1.5" .08
00114604400 .25" .62" 4 300 1.5" .15
00114605400 .3125" .62" 4 300 2.0" .13
00114606200 .375" .68" 2 200 2.25" .15
00114606400 .375" .71" 4 300 2.25" .17
00114608200 .50" .81" 2 200 3.00" .24
00114608400 .50" .84" 4 300 3.0" .24
00114610200 .625" .93" 4 200 3.75" .29
00114610400 .625" 1.00" 4 300 3.75" .29
00114612200 .75" 1.15" 4 200 4.50" .36
00114612400 .75" 1.15" 4 300 4.50" .40
00114616200 1" 1.37" 4 200 7.00" .49
00114616400 1" 1.43" 4 300 7.00" .49
00114620200 1.25" 1.75" 4 200 8.75" .79
00114624200 1.5" 2.00" 4 200 10.50" .90
00114632200 2" 2.55" 4 200 14.00" 1.08
Valuflex/GS Series — Red
00114504200 .25" .49" 2 200 1.5" .09
00114504400 .25" .62" 4 300 1.5" .16
00114505200 .3125" .58" 2 200 2.0" .12
00114505400 .3125" .62" 4 300 2.0" .14
00114506200 .375" .68" 2 200 2.25" .16
00114506400 .375" .71" 4 300 2.25" .18
00114508200 .5" .81" 2 200 3.0" .25
00114508400 .5" .84" 4 300 3.0" .25
00114510200 .625" .93" 4 200 3.75" .30
00114510400 .625" 1.00" 4 300 3.75" .30
00114512200 .75" 1.15" 4 200 4.50" .38
00114512400 .75" 1.15" 4 300 4.50" .41
00114516300 1" 1.37" 4 200 7.0" .51
00114516400 1" 1.37" 4 300 7.0" .51
00114520200 1.25" 1.75" 4 200 8.750" .81
00114524200 1.50" 2.0" 4 200 10.50" .95
00114532200 2.0" 2.55" 4 200 14.0" 1.13
⚠ CAUTION: Not a steam or fuel hose. Do not use with petroleum-based fuels or oils, and avoid environments where oil is present.
i
Sold in bulk lengths unless a by-the-foot price is selected. We make every effort to ship exact single lengths, but under manufacturer guidelines a bulk order may arrive in multiple pieces and may run plus or minus 10% of the ordered quantity. If you require one continuous length, choose the single-length option (premium pricing) — there are no exceptions to the bulk guidelines, and all listed prices are bulk prices. Placing an order confirms that you have read, understand and agree to these terms.

How is this product sold?

By default in bulk lengths at bulk pricing. By-the-foot and guaranteed single-length options are available through the option selector.

Thermoid

Established in 1883, Thermoid produces one of the broadest lines of industrial rubber products available anywhere in the world. Made in the USA, our industrial hose products are selected and used by thousands of industrial customers and OEMs around the world.
