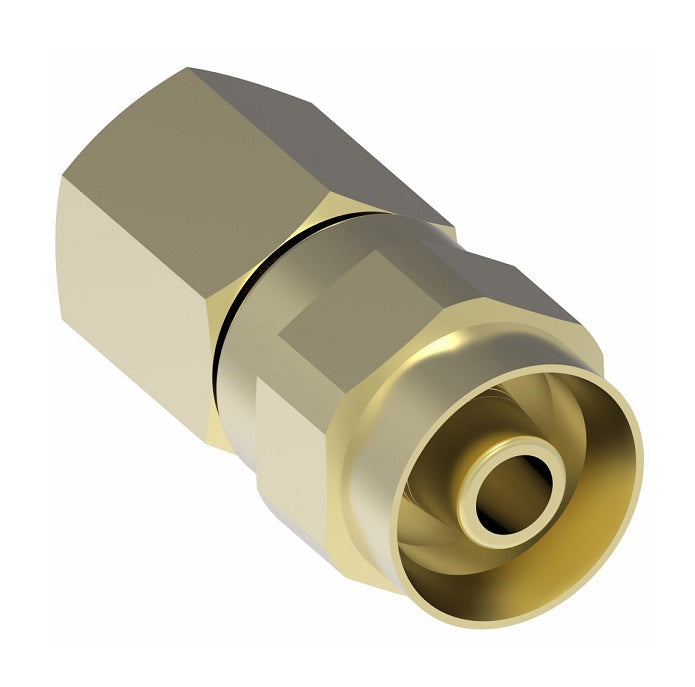

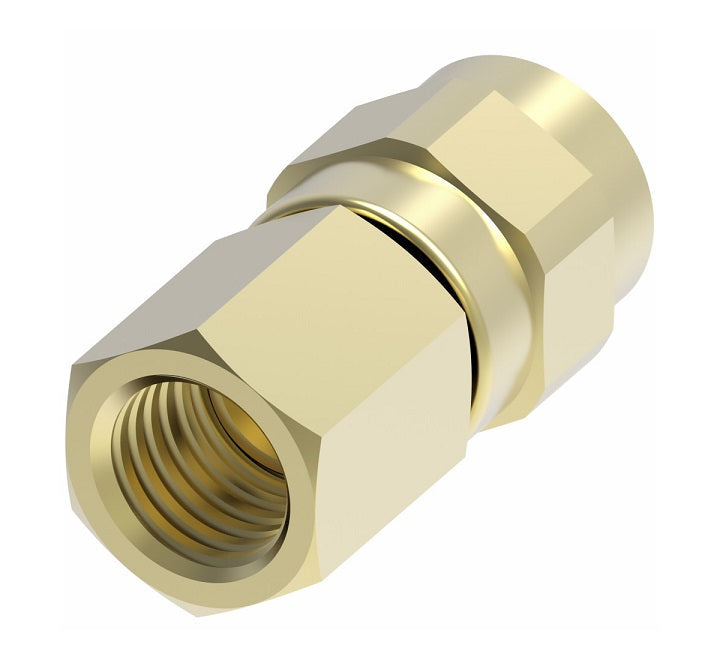

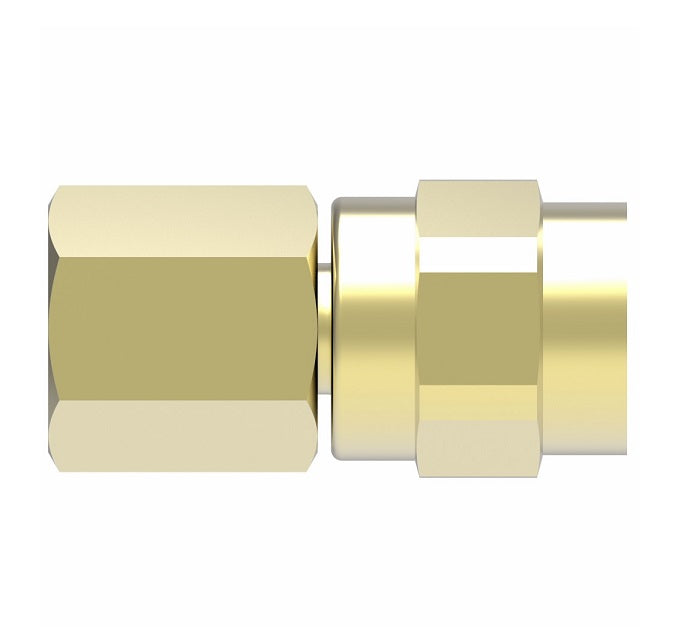

00904B-604 Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | 009 "B" Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Brass

00904B-604 Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | 009 "B" Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Brass

Name: 00904B-604 Weatherhead by Danfoss | Female 37° JIC Swivel Field Attachable Fitting | 009 "B" Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Brass
Brand: Danfoss/Eaton
SKU: 00904B-604 Danfoss
Price: 14.3 USD
Availability: InStock

$14.30 - $14.30

$14.30

$14.30 - $14.30

$14.30

Weatherhead by Danfoss
Field Attachable Fitting - 009 "B" Series - Female 37° JIC Swivel

Quantity

Specifications for Variant SKU: 00904B-604 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female JIC, 1/4in Reusable Hose End
Material(s):	Brass
Compatible with the following Series:	H009 Series

Applications:
Low pressure air, lube and oil lines
Features:
Reusable and easy to assemble. An excellent Fitting where low pressure applications exist and a clamp may get in the way.


Brass Part Number	Hose ID	Pipe Size	Thread	A	Hose Cut-Off Factor	Hole Diameter	Hex E	Hex F
00904B-604	1/4"	1/4"	7/16-20	1.31"	0.81"	0.172"	5/8"	9/16"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
