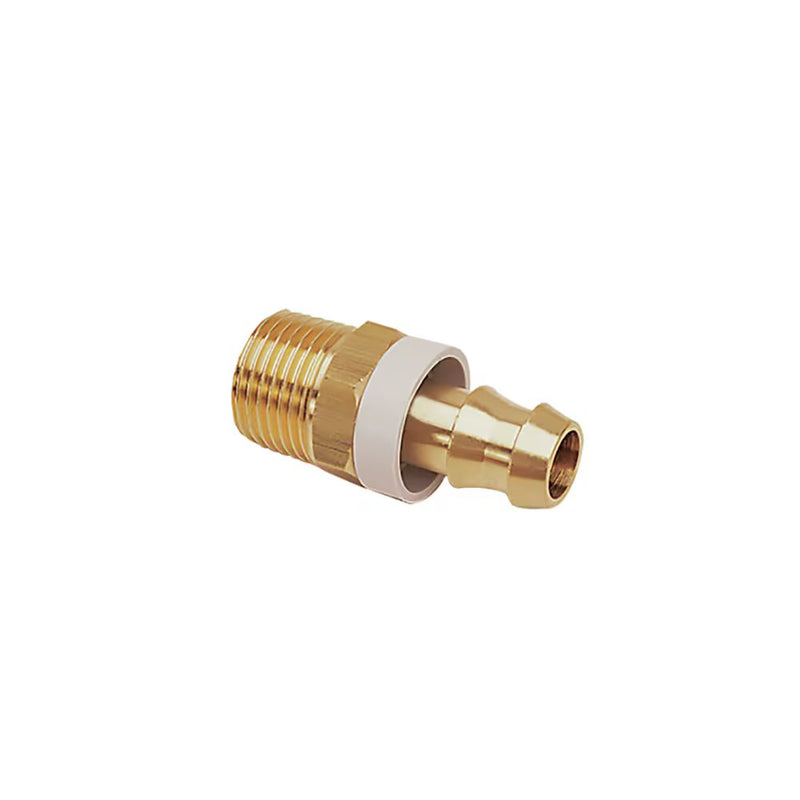

0134 66 21 by Parker | Legris Self-Fastening Barb Connector | 15.9 mm Tube ID x 23 mm Tube OD x 1/2" Male BSPT Thread | 22 mm Hex | 58.5 mm Length | Straight | Brass | Pack of 5

Save $7.05

$77.52

$77.52 - $77.52

$77.52

$70.47

$70.47 - $70.47

$70.47

by Parker Hannifin
Self-Fastening Hose Barb Connectors:0134 Self-Fastening Barb Connector, Male BSPT Thread

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 0134 66 21 Parker \| 5 \|
Series:	0134 Series
Shape (Orientation):	Straight
Material(s):	Brass, Polymer
Special Properties:	Silicone Free, Spark Resistance

Technical Characteristics:	Compatible Fluids: Coolants, compressed air Working Pressure: 0 to 16 bar Working Temperature: 0°C to +100°C -20°C to +70°C (air)
Advantages:	Easy to use Spark resistant Economic and time saving solution Mechanical properties proven for use in industrial robotic installations Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:	Body: Brass Collar: Engineering polymer


Part Number	ØD1	ØD2	C	F	G	L	L1	ØT	Kg
0134 56 10	6.3 mm	13 mm	1/8"	14 mm	16.5 mm	32.5 mm	20 mm	4.8 mm	.015 Kg
0134 56 13	6.3 mm	13 mm	1/4"	14 mm	16.5 mm	37 mm	20 mm	4.8 mm	.020 Kg
0134 60 13	9.5 mm	16 mm	1/4"	14 mm	19.5 mm	41 mm	24 mm	7.5 mm	.022 Kg
0134 60 17	9.5 mm	16 mm	3/8"	19 mm	19.5 mm	41.5 mm	24 mm	7.5 mm	.036 Kg
0134 62 17	12.7 mm	19 mm	3/8"	19 mm	23.5 mm	45.5 mm	28 mm	10 mm	.038 Kg
0134 62 21	12.7 mm	19 mm	1/2"	22 mm	23.5 mm	50 mm	28 mm	10 mm	.062 Kg
0134 66 21	15.9 mm	23 mm	1/2"	22 mm	27 mm	58.5 mm	36.5 mm	13.5 mm	.056 Kg
0134 66 27	15.9 mm	23 mm	3/4"	27 mm	27 mm	60.5 mm	36.5 mm	13.5 mm	.101 Kg
0134 69 27	19.1 mm	27 mm	3/4"	27 mm	30.5 mm	67 mm	43 mm	16 mm	.108 Kg

Polymer collar
