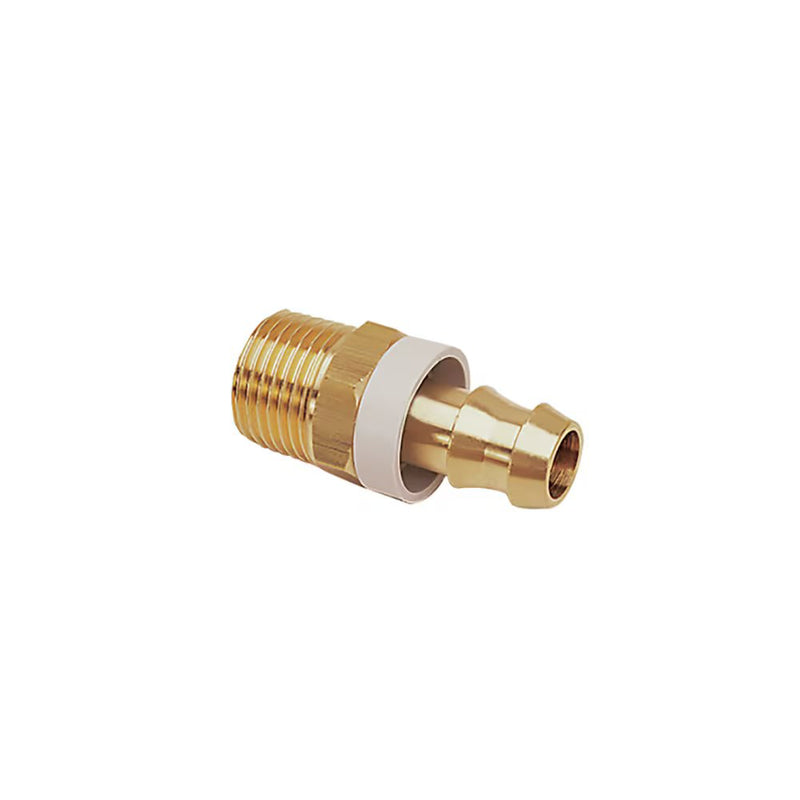

0134 66 27 by Parker | Legris Self-Fastening Barb Connector | 15.9 mm Tube ID x 23 mm Tube OD x 3/4" Male BSPT Thread | 27 mm Hex | 60.5 mm Length | Straight | Brass | Pack of 5

Save $9.37 Save $9.37
Original price $103.02
Original price $103.02 - Original price $103.02
Original price $103.02
Current price $93.65
$93.65 - $93.65
Current price $93.65

by Parker Hannifin
Self-Fastening Hose Barb Connectors:0134 Self-Fastening Barb Connector, Male BSPT Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 0134 66 27 Parker | 5 |
Series: 0134 Series
Shape (Orientation): Straight
Material(s): Brass, Polymer
Special Properties: Silicone Free, Spark Resistance
Technical Characteristics:
  • Compatible Fluids: Coolants, compressed air
  • Working Pressure: 0 to 16 bar
  • Working Temperature: 0°C to +100°C
    -20°C to +70°C (air)
Advantages:
  • Easy to use
  • Spark resistant
  • Economic and time saving solution
  • Mechanical properties proven for use in industrial robotic installations
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: Brass
  • Collar: Engineering polymer
Part Number ØD1 ØD2 C F G L L1 ØT Kg
0134 56 10 6.3 mm 13 mm 1/8" 14 mm 16.5 mm 32.5 mm 20 mm 4.8 mm .015 Kg
0134 56 13 6.3 mm 13 mm 1/4" 14 mm 16.5 mm 37 mm 20 mm 4.8 mm .020 Kg
0134 60 13 9.5 mm 16 mm 1/4" 14 mm 19.5 mm 41 mm 24 mm 7.5 mm .022 Kg
0134 60 17 9.5 mm 16 mm 3/8" 19 mm 19.5 mm 41.5 mm 24 mm 7.5 mm .036 Kg
0134 62 17 12.7 mm 19 mm 3/8" 19 mm 23.5 mm 45.5 mm 28 mm 10 mm .038 Kg
0134 62 21 12.7 mm 19 mm 1/2" 22 mm 23.5 mm 50 mm 28 mm 10 mm .062 Kg
0134 66 21 15.9 mm 23 mm 1/2" 22 mm 27 mm 58.5 mm 36.5 mm 13.5 mm .056 Kg
0134 66 27 15.9 mm 23 mm 3/4" 27 mm 27 mm 60.5 mm 36.5 mm 13.5 mm .101 Kg
0134 69 27 19.1 mm 27 mm 3/4" 27 mm 30.5 mm 67 mm 43 mm 16 mm .108 Kg

Polymer collar
