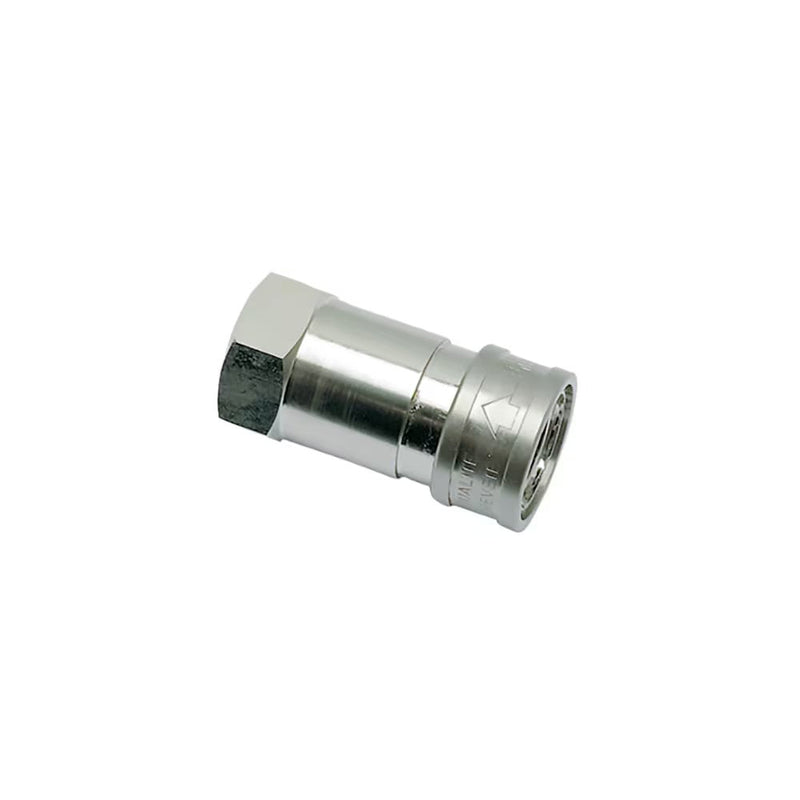

0172 12 17 by Parker | Legris Coupler Quick Disconnect | 3/8" Female BSPP Thread | 27 mm Hex | 56 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $320.53

$801.33

$801.33 - $801.33

$801.33

$480.80

$480.80 - $480.80

$480.80

by Parker Hannifin
Midi Series:0172 Coupler with valve, Female BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0172 12 17 Parker \| 10 \|
Series:	Midi Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Midi Series	Midi Series are adapted for water and compressed air applications. The wide range of plugs many combinations for the end-users. Designed for transmission of water and fluids High flow capabilities Maximum energy efficiency
Working Pressure:	up to 20 bar
Material:	Coupling: Nickel Plated Brass Plug: Nickel Plated Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	2.200 NI/min. (inlet pressure 6 bar, pressure drop 0.6 bar)


Part Number	Diameter Nominal (DN)	C	E	F	G	L
0172 12 17	12 mm	3/8"	16 mm	27 mm	29 mm	56 mm
0172 12 21	12 mm	1/2"	16 mm	27 mm	29 mm	56 mm

Midi Series: single shut-off = 2200Nl/min
