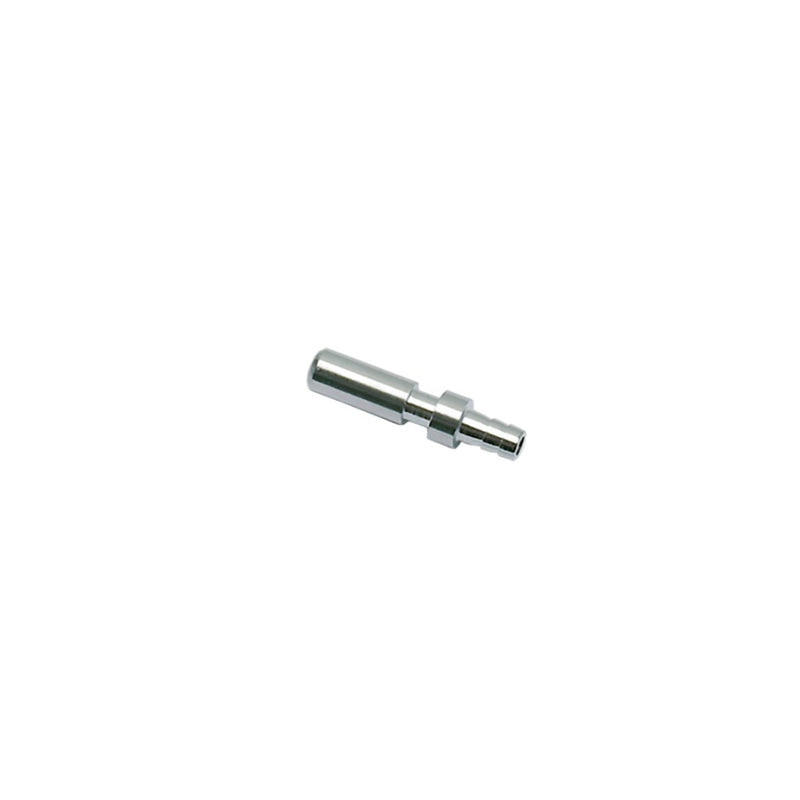

0181 04 06 by Parker | Legris Plug Quick Disconnect | 4 mm Tube Size x 4.7 mm Barb | Nickel-Plated Brass | Pack of 10

Save $0.92

$33.32

$33.32 - $33.32

$33.32

$32.40

$32.40 - $32.40

$32.40

by Parker Hannifin
Metal Quick-Acting Couplers:0181 Plug without valve, with Barb Connection for Polyamide (PA) Tubing

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 0181 04 06 Parker \| 10 \|
Series:	0181 Series
Shape (Orientation):	No Orientation
Material(s):	Nickel-Plated Brass
Special Properties:	Ergonomic

Mini Series:	The mini series offer space saving solutions for frequent disconnection of tubing or pneumatic tools. Compact and ergonomic Easy identification of circuits Easy disconnection / single hand operation
Working Pressure:	up to 20 bar
Material:	Coupling: Technical Polymer, Nickel-Plated Brass Plug: Nickel-Plated Brass Seals: NBR
Working Temperature:	-20°C up to +60°C (NBR)
Flow Rate Air:	165 Nl/min. (inlet pressure 6 bar, pressure dop 0.6 bar)


Part Number	Diameter Nominal (DN)	ØD	ØD1	L	Kg
0181 04 06	3	4 mm	4.7 mm	19 mm	.005 Kg

Probe without Shut-off

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
