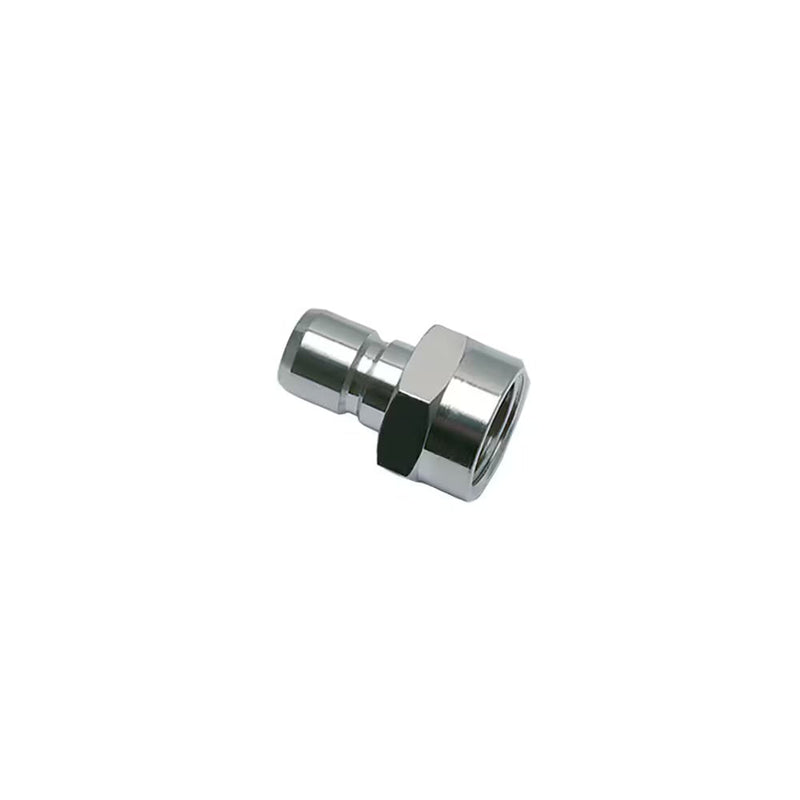

0196 12 17 by Parker | Legris Plug Quick Disconnect | 3/8" Female BSPP Thread | 21 mm Hex | Straight | Nickel-Plated Brass | Pack of 10

Save $58.85

$147.12

$147.12 - $147.12

$147.12

$88.27

$88.27 - $88.27

$88.27

by Parker Hannifin
Midi Series:0196 Plug without valve, Female BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0196 12 17 Parker \| 10 \|
Series:	Midi Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

Midi Series	Midi Series are adapted for water and compressed air applications. The wide range of plugs many combinations for the end-users. Designed for transmission of water and fluids High flow capabilities Maximum energy efficiency
Working Pressure:	up to 20 bar
Material:	Coupling: Nickel Plated Brass Plug: Nickel Plated Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	2.200 NI/min. (inlet pressure 6 bar, pressure drop 0.6 bar)


Part Number	Diameter Nominal (DN)	C	E	F	L
0196 12 13	12 mm	1/4"	12 mm	17 mm	16 mm
0196 12 17	12 mm	3/8"	12 mm	21 mm	15 mm
0196 12 21	12 mm	1/2"	14 mm	26 mm	17 mm

Probe without Shut-off
