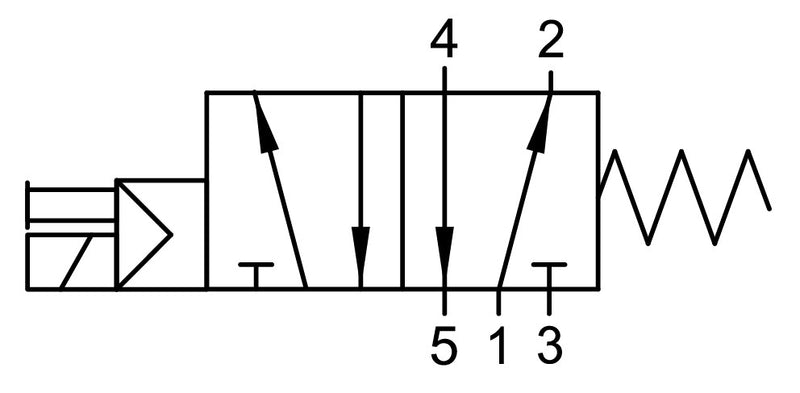

01VS050002N AIGNEP | 01V Control Valves Series | 5 port/4 way/2 position | Single Solenoid Pilot | Spring Return | Female 1/8" NPT
01VS050002N by AIGNEP | 01V Control Valves Series | 5 port/4 way/2 position | Single Solenoid Pilot | Spring Return | Female 1/8" NPT
01VS050002N AIGNEP | 01V Control Valves Series | 5 port/4 way/2 position | Single Solenoid Pilot | Spring Return | Female 1/8" NPT

01VS050002N by AIGNEP | 01V Control Valves Series | 5 port/4 way/2 position | Single Solenoid Pilot | Spring Return | Female 1/8" NPT

Save $29.38 Save $29.38
$73.45
$73.45 - $73.45
$73.45
$44.07
$44.07 - $44.07
$44.07
Specifications for Variant SKU: 01VS050002N AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/8in Female NPT, 1/8in Female NPT, Some Ends Match
Material(s): Plastic
SOLENOID PILOT VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body (1/8 - 1/4 - 1/2)
• Anodised aluminium body (3/8)
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Size
01VS050002N0101 01VS050002N0102 12V DC 3W 5/2 Monostable Spring Return 1/8" NPTF
01VS050002N0201 01VS050002N0202 24V DC 3W 5/2 Monostable Spring Return 1/8" NPTF
01VS050002N0301 01VS050002N0302 24V DC 2W 5/2 Monostable Spring Return 1/8" NPTF
01VS050002N0401 01VS050002N0402 24V AC 5VA 5/2 Monostable Spring Return 1/8" NPTF
01VS050002N0501 01VS050002N0502 110V AC 5VA 5/2 Monostable Spring Return 1/8" NPTF
01VS050002N0601 01VS050002N0602 220V AC 5VA 5/2 Monostable Spring Return 1/8" NPTF
01VS050003N0101 01VS050003N0102 12V DC 3W 5/2 Monostable Spring Return 1/4" NPTF
01VS050003N0201 01VS050003N0202 24V DC 3W 5/2 Monostable Spring Return 1/4" NPTF
01VS050003N0301 01VS050003N0302 24V DC 2W 5/2 Monostable Spring Return 1/4" NPTF
01VS050003N0401 01VS050003N0402 24V AC 5VA 5/2 Monostable Spring Return 1/4" NPTF
01VS050003N0501 01VS050003N0502 110V AC 5VA 5/2 Monostable Spring Return 1/4" NPTF
01VS050003N0601 01VS050003N0602 220V AC 5VA 5/2 Monostable Spring Return 1/4" NPTF
01VS050005N0101 01VS050005N0102 12V DC 3W 5/2 Monostable Spring Return 1/2" NPTF
01VS050005N0201 01VS050005N0202 24V DC 3W 5/2 Monostable Spring Return 1/2" NPTF
01VS050005N0301 01VS050005N0302 24V DC 2W 5/2 Monostable Spring Return 1/2" NPTF
01VS050005N0401 01VS050005N0402 24V AC 5VA 5/2 Monostable Spring Return 1/2" NPTF
01VS050005N0501 01VS050005N0502 110V AC 5VA 5/2 Monostable Spring Return 1/2" NPTF
01VS050005N0601 01VS050005N0602 220V AC 5VA 5/2 Monostable Spring Return 1/2" NPTF
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
