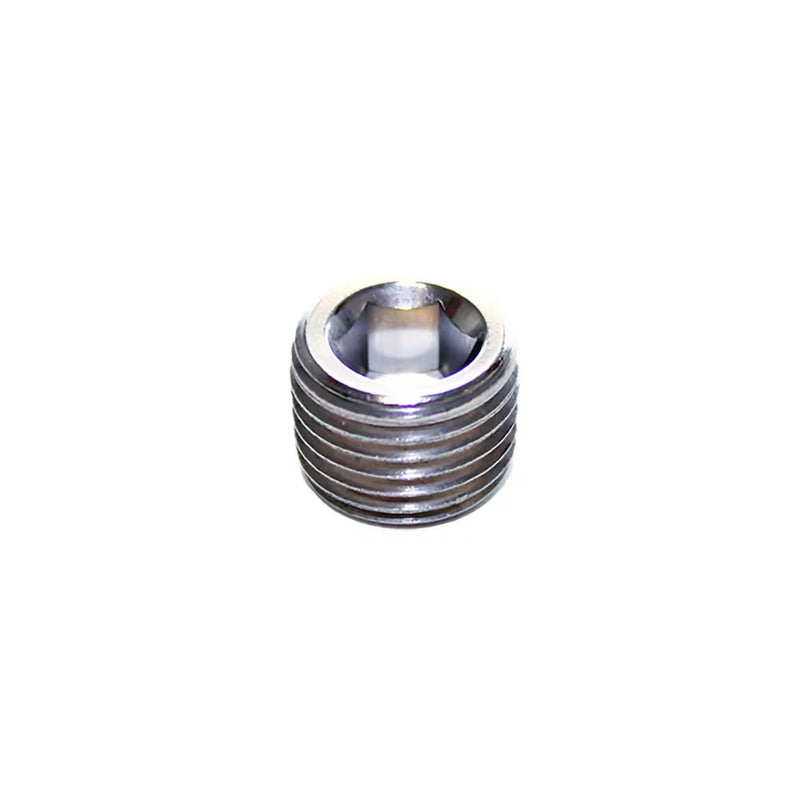

0285 27 00 by Parker | Legris Internal Hex Head Plug | 3/4" Male BSPT Thread | 12 mm Hex | 12 mm Length | 316L Stainless Steel

$39.12 - $39.12

$39.12

$50.88

$50.88 - $50.88

$50.88

by Parker Hannifin
Stainless Steel Plugs:0285 Internal Hexagon Head Plug, Male BSPT Thread

Quantity

Specifications for Variant SKU: 0285 27 00 Parker
Series:	0285 Series
Shape (Orientation):	No Orientation
Material(s):	316L Stainless Steel


Adapters and Manifolds:


Part Number	C	E1	E2 (max)	E3 (min)	F	G	H	Kg
0285 10 00	1/8"	4 mm	3.9 mm	2.1 mm	5 mm	9.7 mm	8 mm	.003 Kg
0285 13 00	1/4"	5 mm	5.8 mm	3.2 mm	7 mm	13.1 mm	10 mm	.007 Kg
0285 17 00	3/8"	5 mm	5.8 mm	3.2 mm	8 mm	16.7 mm	10 mm	.012 Kg
0285 21 00	1/2"	5 mm	6.8 mm	3.2 mm	10 mm	21 mm	10 mm	.024 Kg
0285 27 00	3/4"	6 mm	7.8 mm	4.2 mm	12 mm	26.4 mm	12 mm	.051 Kg
0285 34 00	1"	6 mm	9.3 mm	4.7 mm	17 mm	33.2 mm	12 mm	.089 Kg

Conforms to DIN 906
Thread: EN 10226-1

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
