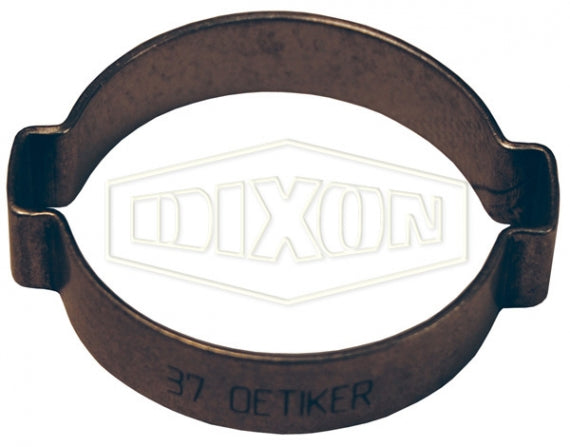

0305R by Dixon Valve | Pinch-On Clamp | Double Ear | 0 .197" Band Width | 3/16" Nominal Size | Clamp Range: 0.134" Closed to 0.197" Open | 304 Stainless Steel

0305R by Dixon Valve | Pinch-On Clamp | Double Ear | 0 .197" Band Width | 3/16" Nominal Size | Clamp Range: 0.134" Closed to 0.197" Open | 304 Stainless Steel | Box of 100

$85.50 - $85.50
$85.50
$97.33
$97.33 - $97.33
$97.33

Dixon Valve
Pinch-On Clamps | Double Ear


Package Quantity: 100 EA

Specifications for Variant SKU: 0305R Dixon | 100 |
Material(s): 304 Stainless Steel
Clamp Width: 0.197
Minimum Clamp I.D.: 0.134
Maximum Clamp I.D.: 0.197
Note:
  • When ordering double ear clamps, select nominal clamp size nearest to, but always larger than, the O.D. of material to be clamped after insert has been fitted.
Installation Tools:
  • Standard Jaw Clamp Tool 1098
  • Side Jaw Clamp Tool 1099
Zinc Plated Steel
Part Number		 304 Stainless Steel
Part Number		 Nominal Size Range Band Width
Closed Open
0305 0305R 3/16" 0.134" 0.197" 0.197"
0507 0507R 1/4" 0.197" 0.276" 0.236"
0709 0709R 5/16" 0.276" 0.354" 0.275"
0811 0811R 3/8" 0.319" 0.433" 0.275"
1113 1113R 1/2" 0.425" 0.512" 0.275"
1315 1315R 9/16" 0.492" 0.591" 0.295"
1517 1517R 19/32" 0.551" 0.669" 0.315"
1518 1518R 5/8" 0.591" 0.709" 0.315"
1720 1720R 3/4" 0.638" 0.787" 0.335"
1922 1922R 13/16" 0.709" 0.866" 0.354"
2023 2023R 7/8" 0.748" 0.906" 0.354"
2225 2225R 15/16" 0.827" 0.984" 0.394"
2327 2327R 1" 0.886" 1.063" 0.394"
2731 2731R 1-1/8" 1.035" 1.221" 0.394"
3437 3437R 1-7/16" 1.260" 1.457" 0.394"
3740 3740R 1-1/2" 1.378" 1.575" 0.394"
