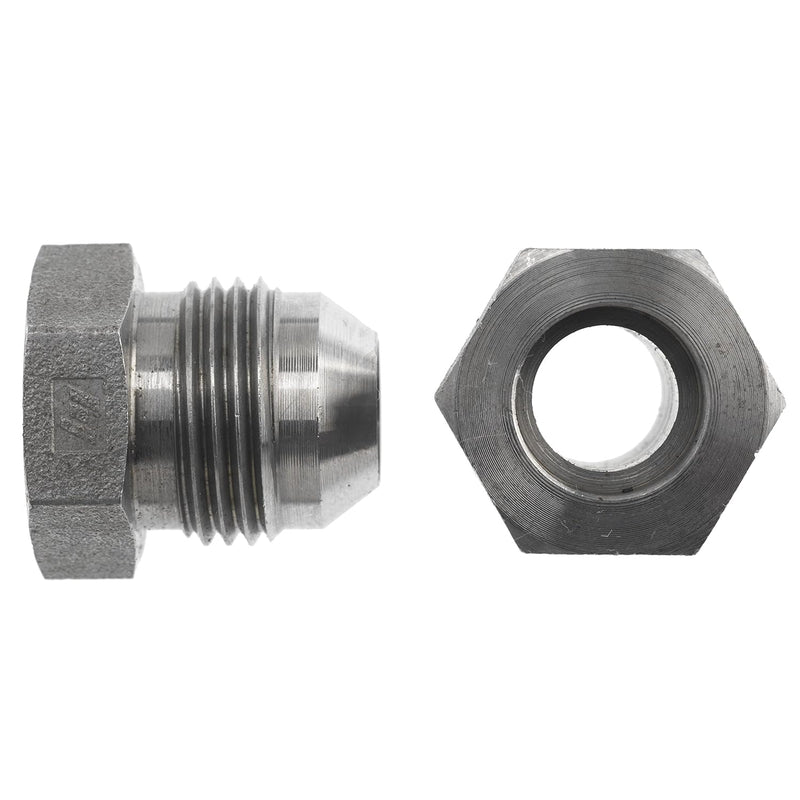

0403-20-20 by Brennan Inc. | -20 Bore x -20 Male JIC | Straight | Steel

0403-20-20 by Brennan Inc. | -20 Bore x -20 Male JIC | Straight | Steel

$7.68 - $7.68
$7.68
$9.75
$9.75 - $9.75
$9.75

Brennan Inc.
Tube Fittings & Adapters | 0403 - Bore x Male JIC Straight
Specifications for Variant SKU: 0403-20-20 Brennan
Shape (Orientation): Straight
Material(s): Steel
Part Number Material Tube OD B2 Thread B Bore D Drill L Length W Width C Hex
0403-04-04 Steel 1/4" 7/16-20 0.254" 0.172" 0.800" 0.250" 0.500"
0403-05-04 Steel 5/1-1/4" 7/16-20 0.319" 0.172" 0.800" 0.250" 0.500"
0403-05-05 Steel 5/16-5/16" 1/2-20 0.319" 0.234" 0.800" 0.250" 0.562"
0403-06-06 Steel 3/8-3/8" 9/16-18 0.379" 0.297" 0.840" 0.284" 0.625"
0403-06-08 Steel 3/8-1/2 3/4-16 0.379" 0.297" 0.940" 0.283" 0.812"
0403-08-06 Steel 1/2-3/8" 9/16-18 0.504" 0.297" 0.940" 0.384" 0.812"
0403-08-08 Steel 1/2-1/2" 3/4-16 0.504" 0.391" 0.940" 0.283" 0.812"
0403-08-10 Steel 1/2-5/8" 7/8-14 0.506" 0.484" 1.093" 0.310" 0.937"
0403-10-08 Steel 5/8-1/2" 3/4-16 0.631" 0.391" 0.937" 0.250" 0.937"
0403-10-10 Steel 5/8" 7/8-14 0.631" 0.484" 1.100" 0.342" 0.937"
0403-10-12 Steel 5/8-3/4" 1-1/16-12 0.631" 0.484" 1.280" 0.412" 1.125"
0403-12-08 Steel 3/4-1/2" 3/4-16 0.757" 0.391" 0.980" 0.323" 0.937"
0403-12-10 Steel 3/4-5/8" 7/8-14 0.756" 0.484" 1.100" 0.380" 0.938"
0403-12-12 Steel 3/4-3/4" 1-1/16-12 0.756" 0.609" 1.280" 0.416" 1.125"
0403-16-12 Steel 1-3/4" 1-1/16-12 1.006" 0.609" 1.280" 0.416" 1.250"
0403-16-16 Steel 1" 1-5/16-12 1.006" 0.844" 1.320" 0.409" 1.375"
0403-16-20 Steel 1-1 1-1/4" 1-5/8-12 1.006" 0.844" 1.450" 0.492" 1.688"
0403-20-16 Steel 1-1/4-1-1" 1-5/16-12 1.257" 0.844" 1.730" 0.819" 1.688"
0403-20-20 Steel 1-1/4 1-1/4" 1-5/8-12 1.256" 1.078" 1.450" 0.492" 1.688"
0403-24-20 Steel 1-1/2 1-1/4" 1-5/8-12 1.506" 1.078" 1.450" 0.492" 2.000"
0403-24-24 Steel 1-1/2 1-1/2" 1-7/8-12 1.507" 1.312" 1.840" 0.757" 2.000"
0403-32-32 Steel 2-2" 2-1/2-12 2.008" 1.781" 2.160" 0.830" 2.625"

0403-04-04-SS Stainless Steel 1/4" 7/16-20 0.254" 0.172" 0.800" 0.250" 0.500"
0403-06-06-SS Stainless Steel 3/8" 9/16-18 0.381" 0.297" 0.840" 0.284" 0.625"
0403-08-08-SS Stainless Steel 1/2" 3/4-16 0.504" 0.391" 0.940" 0.283" 0.812"
0403-10-10-SS Stainless Steel 5/8" 7/8-14 0.631" 0.484" 1.100" 0.342" 0.937"
0403-12-12-SS Stainless Steel 3/4" 1-1/16-12 0.756" 0.609" 1.280" 0.416" 1.125"
0403-16-16-SS Stainless Steel 1" 1-5/16-12 1.006" 0.844" 1.320" 0.409" 1.375"
0403-20-20-SS Stainless Steel 1-1/4" 1-5/8-12 1.256" 1.078" 1.450" 0.492" 1.688"
0403-24-24-SS Stainless Steel 1-1/2" 1-7/8-12 1.507" 1.312" 1.840" 0.757" 2.000"
0403-32-32-SS Stainless Steel 2" 2-1/2-12 2.008" 1.781" 2.160" 0.830" 2.625"
