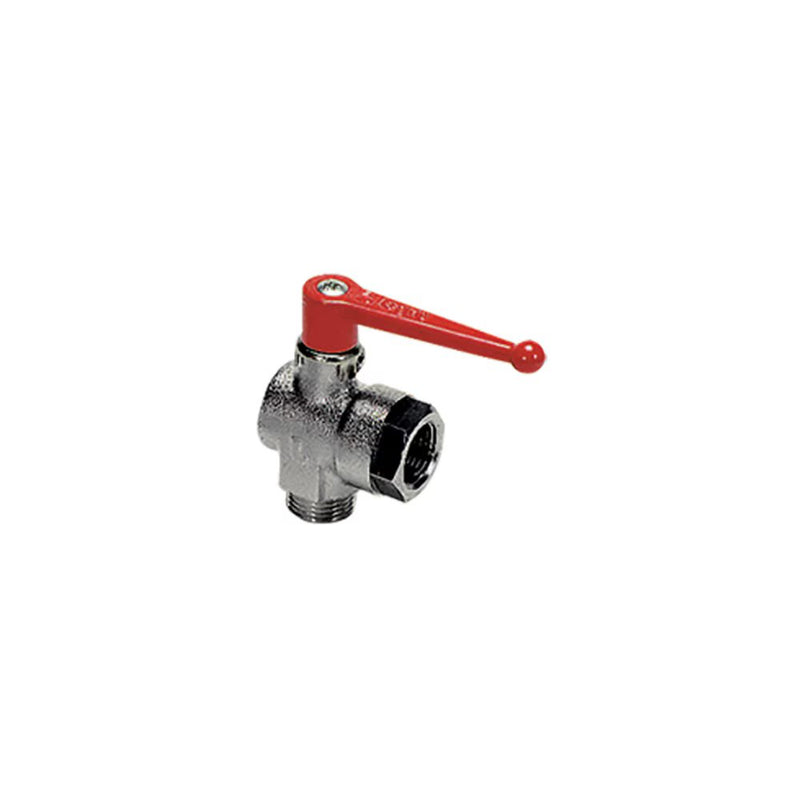

0461 06 13 by Parker | Legris Ball Valve w/ Vent | 1/4" Male BSPP Thread x 1/4" Female BSPP Thread | 19 mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 2

Save $1.30

$71.94

$71.94 - $71.94

$71.94

$70.64

$70.64 - $70.64

$70.64

by Parker Hannifin
Universal Series:0461 3/2 Right-Angled Ball Valve with Vent, Male/Female BSPP Thread

Package Quantity: 2 Units

Quantity

Specifications for Variant SKU: 0461 06 13 Parker \| 2 \|
Series:	0461 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C	E	E1	F	H	H1	H2	J	L	L1	M	Kg
0461 06 10	6 mm	1/8"	8 mm	7 mm	19 mm	38 mm	31 mm	20 mm	22 mm	37 mm	27 mm	48 mm	.182 Kg
0461 06 13	6 mm	1/4"	12 mm	9 mm	19 mm	38 mm	31 mm	24 mm	22 mm	38 mm	28 mm	48 mm	.186 Kg
0461 09 17	9 mm	3/8"	12 mm	11 mm	24 mm	45 mm	43 mm	27 mm	25 mm	46 mm	31 mm	69 mm	.257 Kg
0461 12 21	12 mm	1/2"	15 mm	12 mm	27 mm	47 mm	44 mm	33 mm	29 mm	49 mm	34 mm	69 mm	.304 Kg
0461 18 27	18 mm	3/4"	16.5 mm	12 mm	38 mm	59 mm	51 mm	40 mm	39 mm	60 mm	39 mm	108 mm	.648 Kg

Maximum working pressure: 20 bar
