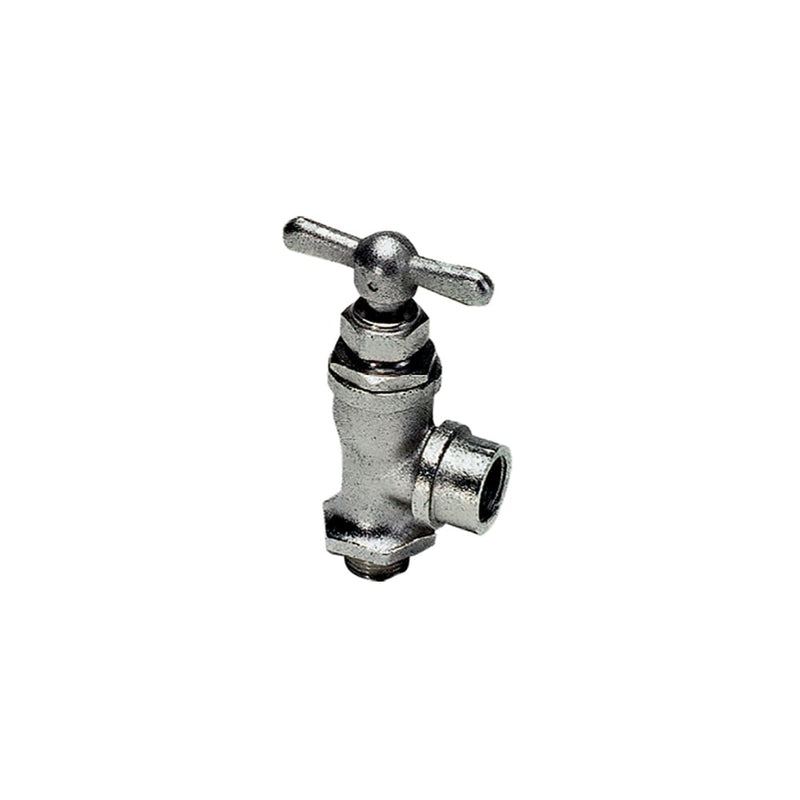

0531 10 21 by Parker | In-Line Needle Valve | 1/2" Male BSPP Thread x 1/2" Female BSPP Thread | 106 mm Length | 90° Elbow | Nickel-Plated Brass

0531 10 21 by Parker | In-Line Needle Valve | 1/2" Male BSPP Thread x 1/2" Female BSPP Thread | 106 mm Length | 90° Elbow | Nickel-Plated Brass

Save $3.09 Save $3.09
$170.02
$170.02 - $170.02
$170.02
$166.93
$166.93 - $166.93
$166.93

by Parker Hannifin
Needle Valve Series:0531 Right-Angle Needle Valve, Male/Female BSPP Thread
Specifications for Variant SKU: 0531 10 21 Parker
Series: 0531 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass, Brass
Special Properties: Silicone Free, Water Hammer Resistance
Technical Characteristics:
  • Compatible Fluids: Compressed air, water, industrial fluids, etc.
  • Working Pressure: 0 to 120 bar
  • Working Temperature: -20°C to +100°C (except model 0510)
Advantages:
  • Manual flow adjustment
  • Numerous valve and safety accessory configurations
Regulations:
  • PED
  • RoHS
  • REACH
Component Materials:
  • Stem nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Top packing washer: Brass or 316L Stainless Steel (0591)
  • Body: Nickel-plated brass or 316L Stainless Steel (0591)
  • Lever: Zamak, Nickel-plated brass or 316L Stainless Steel (0591)
  • Locking nut: Nickel-plated brass or 316L Stainless Steel (0591)
  • Needle: Nickel-plated brass or 316L Stainless Steel (0591)
  • Bottom packing washer: Mineral Fiber
Part Number Diameter Nominal (DN) ØD C F H (min) H (max) L/2 Kg
0510 04 06 4 mm 6 mm M10x1 13 mm 42 mm 46 mm 29 mm .083 Kg
0510 05 08 8 mm 8 mm M12x1 14 mm 42 mm 46 mm 30 mm .083 Kg
0510 05 10 5 mm 10 mm M16x1.5 19 mm 42 mm 46 mm 31 mm .134 Kg

The needle is sealed by an O-ring.
Maximum operating pressure: Ø4: 100 bar, Ø5: 60 bar
Working temperature: -15°C to +70°C
Tightening torques: please refer to the Compression Fittings chapter of this catalogue.
