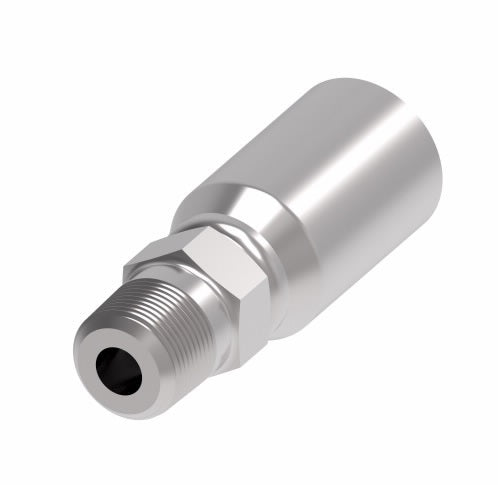

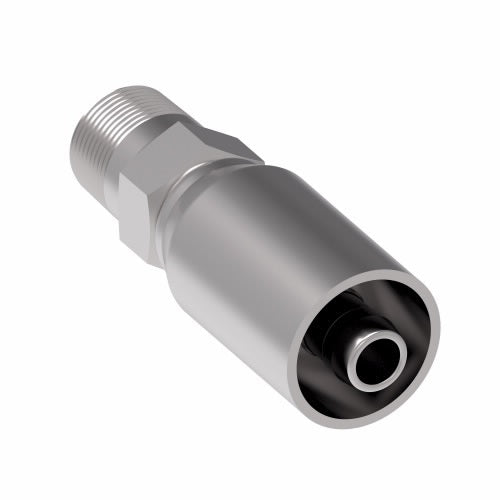

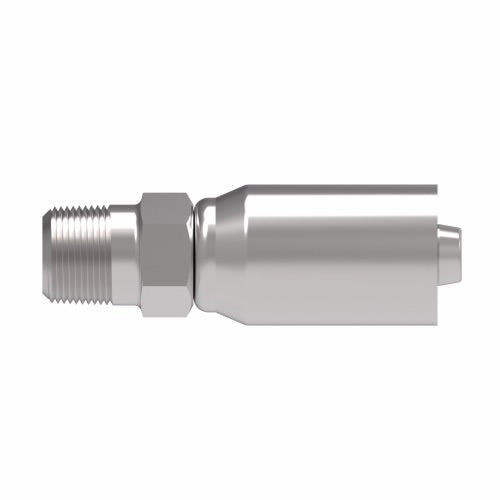

05E-104 Weatherhead by Danfoss | Everflex E Series | Male Pipe Rigid Crimp Fitting | -04 Male NPTF x -05 Hose Barb | Steel

05E-104 Weatherhead by Danfoss | Everflex E Series | Male Pipe Rigid Crimp Fitting | -04 Male NPTF x -05 Hose Barb | Steel

Name: 05E-104 Weatherhead by Danfoss | Everflex E Series | Male Pipe Rigid Crimp Fitting | -04 Male NPTF x -05 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 05E-104 Danfoss
Price: 17.4 USD
Availability: InStock

$17.40 - $17.40

$17.40

$17.40 - $17.40

$17.40

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Male Pipe - Straight

Quantity

Specifications for Variant SKU: 05E-104 Danfoss
Brand:	Weatherhead
Series:	Everflex E Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPTF, 5/16in Hose Barb
Material(s):	Steel
Compatible with the following Series:	H009 Series \| H243 Series \| H275 Series \| H277 Series \| H285 Series

Applications:
General purpose low and medium pressure hydraulics. Use H277 where shock hazards exist.
Pressure:
Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
Low carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H009, H243, H275, H277, H285
Warning:
For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only


Carbon Steel Part Number	Stainless Steel Part Number	Hose I.D.	Pipe Size	Thread Size	A	Hose Cut-Off Factor	Hole Dia.	Hex E
03E-102	-	3/16"	1/8"	1/8-27	1.58"	0.75"	0.09"	7/16"
03E-104	03ER-104	3/16"	1/4"	1/4-18	1.83"	1.00"	0.09"	9/16"
04E-102	-	1/4"	1/8"	1/8-27	1.60"	0.75"	0.16"	7/16"
04E-104	-	1/4"	1/4"	1/4-18	1.79"	1.00"	0.16"	9/16"
04E-106	-	1/4"	3/8"	3/8-18	1.82"	1.00"	0.16"	11/16"
05E-104	05E-104	5/16"	1/4"	1/4-18	1.86"	0.94"	0.22"	9/16"
05E-106	-	5/16"	3/8"	3/8-18	1.89"	1.00"	0.22"	11/16"
06E-104	-	3/8"	1/4"	1/4-18	1.90"	1.00"	0.27"	9/16"
06E-106	-	3/8"	3/8"	3/8-18	1.93"	1.00"	0.27"	11/16"
06E-108	-	3/8"	1/2"	1/2-14	2.17"	1.25"	0.27"	7/8"
08E-106	-	1/2"	3/8"	3/8-18	2.02"	1.00"	0.38"	3/4"
08E-108	08ER-108	1/2"	1/2"	1/2-14	2.27"	1.25"	0.38"	7/8"
-	10ER-112	-	-	-	-	-	-	-
12E-112	-	3/4"	3/4"	3/4-14	2.51"	1.31"	0.61"	1-1/16"
16E-116	-	1"	1"	1-11-1/2	2.95"	1.63"	0.84"	1-3/8"

Note: Drawings may differ from actual parts.
