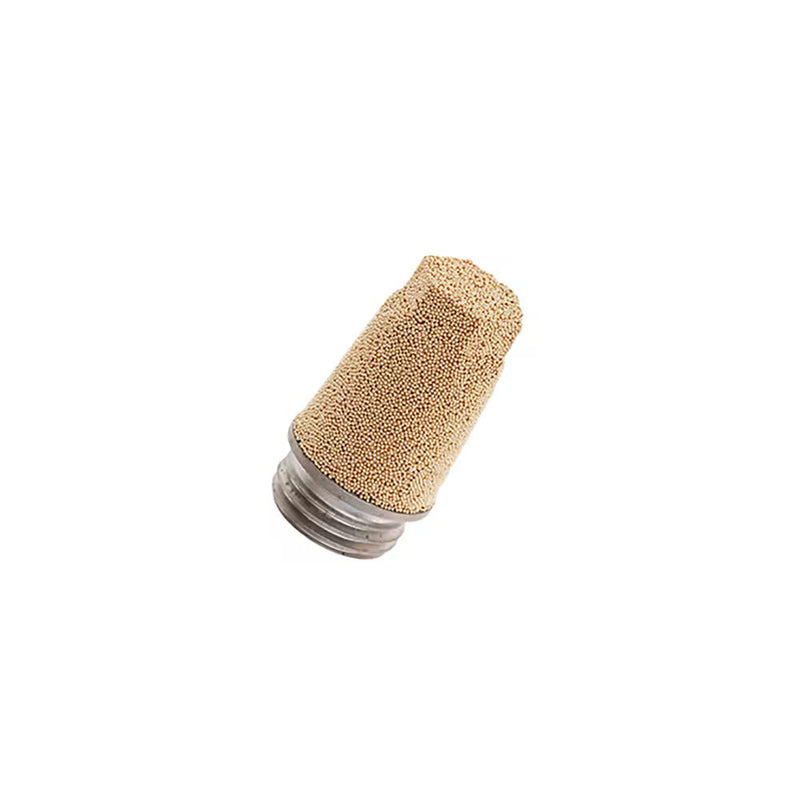

0610 00 14 by Parker | Legris Silencer | 1/4" Male NPT Thread | 1.10" Length | Bronze | Pack of 10

Save $0.68

$39.61

$39.61 - $39.61

$39.61

$38.93

$38.93 - $38.93

$38.93

by Parker Hannifin
Silencers:0673 Compact Silencer, Male BSPP and Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 0610 00 14 Parker \| 10 \|
Series:	0610 Series
Shape (Orientation):	No Orientation
Material(s):	Bronze
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Polyethylene: 0 to 10 bar Sintered bronze: 0 to 12 bar 316L Stainless Steel: 0 to 12 bar Working Temperature: Polyethylene: -10°C to +80°C Sintered bronze: -20°C to +150°C 316L Stainless Steel: -20°C to +180°C
Advantages:	3 materials available - Polyethylene: optimum exhaust flow rate and noise attention - Sintered bronze: robust and economic - 316L stainless Steel: increased chemical and mechanical resistance incorporated flow control regulator on 2 versions
Regulations:	RoHS PED REACH 2003/10/CE OSHA
Component Materials:	Body: Brass (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683) Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683)


Part Number	UNF/NPT (C)	J	G	L	L1	Wt (Oz)
0673 00 20*	10-32	.27"	.31"	.34"	.18"	.07 Oz
0610 00 11	1/8"	.31"	.42"	.89"	.71"	.21 Oz
0610 00 14	1/4"	.39"	.59"	1.10"	.87"	.46 Oz
0610 00 18	3/8"	.51"	.75"	1.42"	1.14"	.85 Oz
0610 00 22	1/2"	.59"	.91"	1.73"	1.42"	1.48 Oz

* Brass Body
