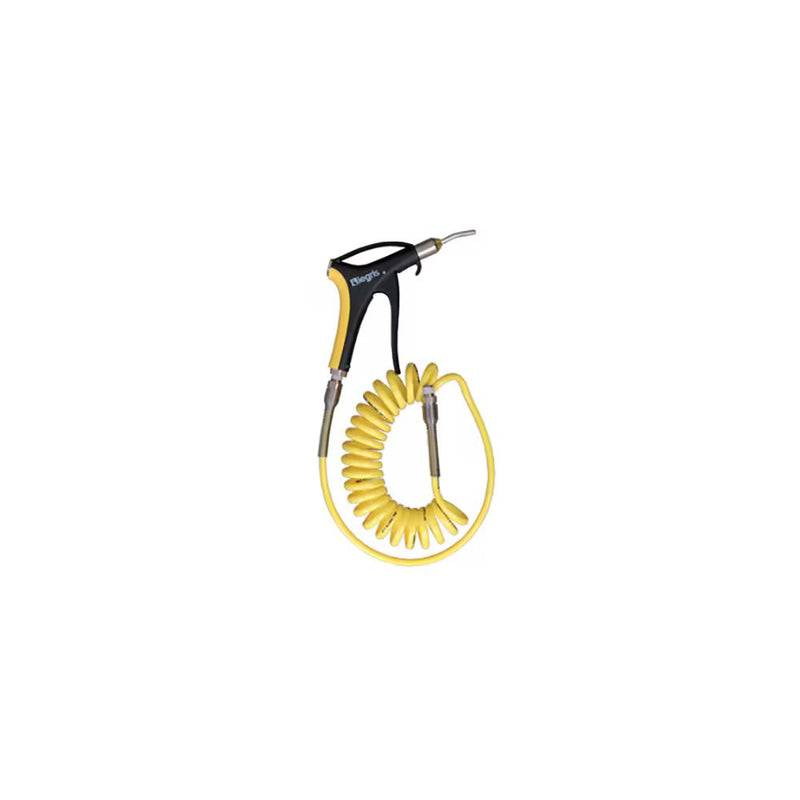

0631 00 01 by Parker | Legris Safety Blowgun Kit | 1/4" Male BSPT Thread | 16 mm Hex | Yellow | Polymer

Save $6.51

$238.67

$238.67 - $238.67

$238.67

$232.16

$232.16 - $232.16

$232.16

by Parker Hannifin
Blowgun Kits:0631..01 Safety Blowgun Kit, Lower Connection, Male BSPT Thread

Quantity

Specifications for Variant SKU: 0631 00 01 Parker
Series:	0631 Series
Shape (Orientation):	No Orientation
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Ergonomic, Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 0 to 10 bar Working Temperature: Air: -15°C to +50°C Dry Air: -20°C to +80°C Tubes: Recoil tubing
Advantages:	Kit contents: - one blowgun - a 4 meter recoil tube - one R1/4 threaded fitting, external diameter 8 mm Safety Optimization of your energy consumption Minimum pressure drop
Regulations:	RoHS PED REACH OSHA Protection of design: All designs and models of Parker Legris blowguns have been registered with the following numbers: 13 224 / 13 225 / 13 226 DI: 2003/10/CE Regulation relating to exposure to noise, particularly with regard to risks to hearing. The noise level must be less than 87 dBA.
Component Materials:	Body: Technical Polymer Insert: Nickel-Plated Brass Nozzle: - Aluminum (standard blowgun) - Nickel-Plated Brass (Safety and other blowguns) Trigger: Technical Polymer Tube: Recoil Polyurethane


Part Number	C	F	H	H1	L	Kg
0631 00 01	1/4"	16 mm	198.5 mm	148.5 mm	154 mm	.575 Kg

Flow characteristics, noise level and norm compliance are identical to those of our blowguns (0654 00 13).
