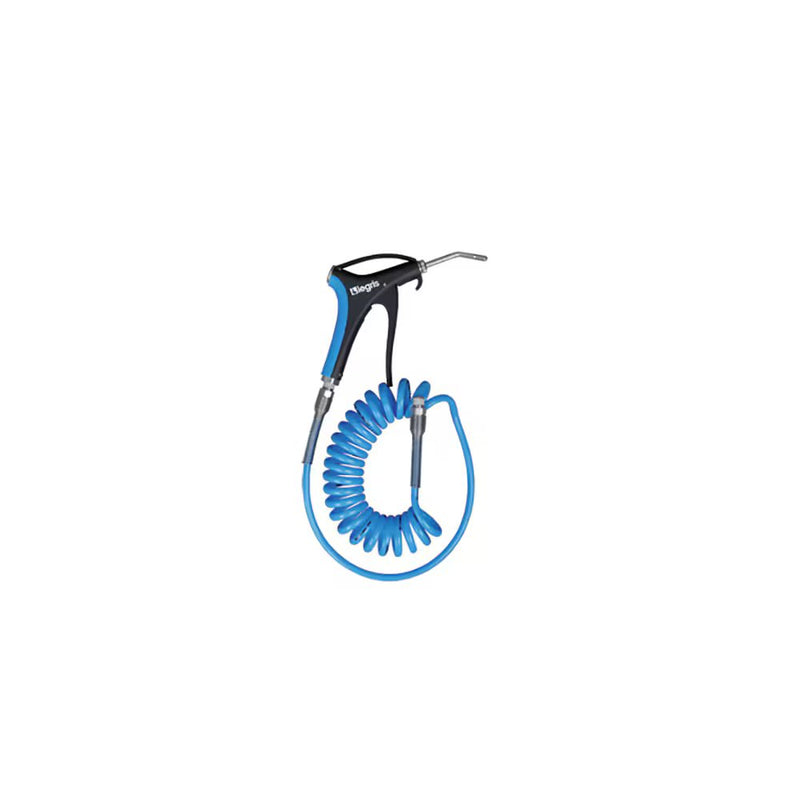

0631 00 05 by Parker | Legris Blowgun Kit w/ Short Angled Nozzle | 1/4" Male BSPT Thread | 16 mm Hex | Blue | Polymer

Save $4.40 Save $4.40
Original price $161.01
Original price $161.01 - Original price $161.01
Original price $161.01
Current price $156.61
$156.61 - $156.61
Current price $156.61

by Parker Hannifin
Blowgun Kits:0631..05 Blowgun Kit Lower Connection with Short Angled Nozzle, Male BSPT Thread

Specifications for Variant SKU: 0631 00 05 Parker
Series: 0631 Series
Shape (Orientation): No Orientation
Material(s): Polymer, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Ergonomic, Silicone Free
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 0 to 10 bar
  • Working Temperature: Air: -15°C to +50°C
    Dry Air: -20°C to +80°C
  • Tubes: Recoil tubing
Advantages:
      Kit contents:
      - one blowgun
      - a 4 meter recoil tube
      - one R1/4 threaded fitting, external diameter 8 mm
  • Safety
  • Optimization of your energy consumption
  • Minimum pressure drop
Regulations:
  • RoHS
  • PED
  • REACH
  • OSHA
  • Protection of design:
    All designs and models of Parker Legris blowguns have been registered with the following numbers: 13 224 / 13 225 / 13 226
  • DI: 2003/10/CE
    Regulation relating to exposure to noise, particularly with regard to risks to hearing. The noise level must be less than 87 dBA.
Component Materials:
  • Body: Technical Polymer
  • Insert: Nickel-Plated Brass
  • Nozzle:
    - Aluminum (standard blowgun)
    - Nickel-Plated Brass (Safety and other blowguns)
  • Trigger: Technical Polymer
  • Tube: Recoil Polyurethane
Part Number C F H H1 L Kg
0631 00 05 1/4" 16 mm 195.5 mm 148.5 mm 163 mm .536 Kg

Flow characteristics, noise level and norm compliance are identical to those of our blowguns ((0656 66 13).
