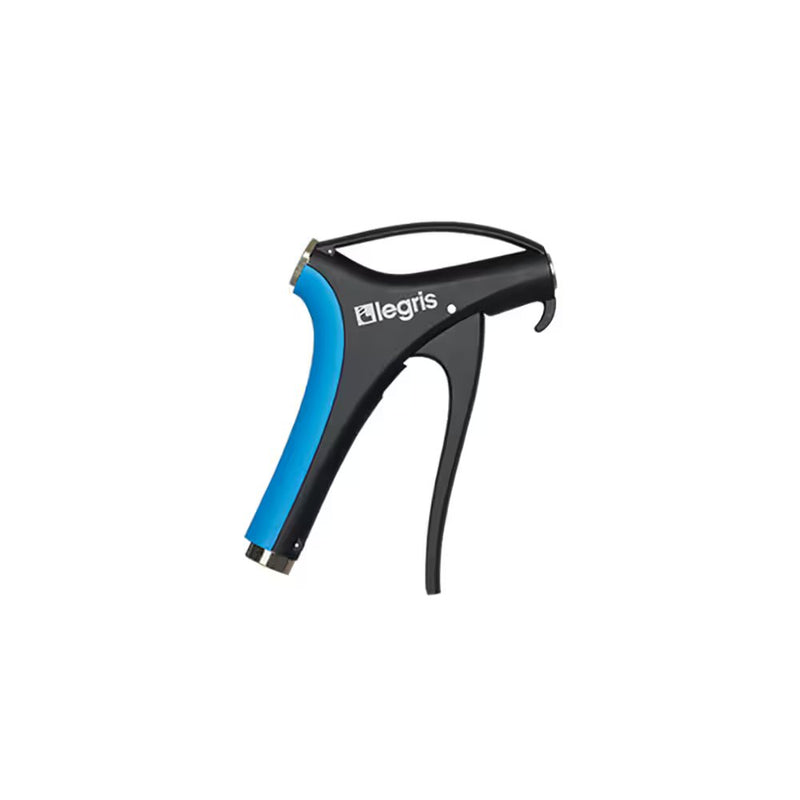

0652 66 13 by Parker | Legris Blowgun w/ Interchangeable | 1/4" Female BSPP Thread x M12x1.25 Nozzle Thread | 20 mm Hex | 153 mm Length | Polymer | Pack of 5

$133.87 - $133.87

$133.87

$156.27

$156.27 - $156.27

$156.27

by Parker Hannifin
Value-Added Polymer Blowguns:0652 Progressive Control Blowgun, Lower Connection with Interchangeable Nozzle, Female BSPP Thread

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 0652 66 13 Parker \| 5 \|
Shape (Orientation):	No Orientation
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 0 to 10 bar Working Temperature: Air: -15°C to +50°C Dry Air: -20°C to +80°C Tubes: Tubes and hoses
Advantages:	Basic & standard blowguns: In compliance with international noise and pressure regulations Swivel nozzles for directional jet Safety blowguns: Meets OSHA or SUVA standards according to model and complies with: - noise exposure requirements - provisions relating to outlet pressure Energy-saving blowguns Limited flow for lower energy consumption Kits and nozzles: to ensure a suitable product
Regulations:	RoHS PED REACH OSHA Protection of design: All designs and models of Parker Legris blowguns have been registered with the following numbers: 13 224 / 13 225 / 13 226 DI: 2003/10/CE Regulation relating to exposure to noise, particularly with regard to risks to hearing. The noise level must be less than 87 dBA.
Component Materials:	Body: Technical Polymer Connection: Nickel-Plated Brass Nozzle: - Aluminum (standard blowgun) - Nickel-Plated Brass (Safety and other blowguns) Trigger: Technical Polymer


Part Number	C	C1	F	H	H1	L	Kg
0652 66 13	1/4"	M12x1.25	20 mm	117 mm	34 mm	147 mm	.163 Kg

Flow characteristics depend on the type of nozzle used.
Delivered without nozzle.
