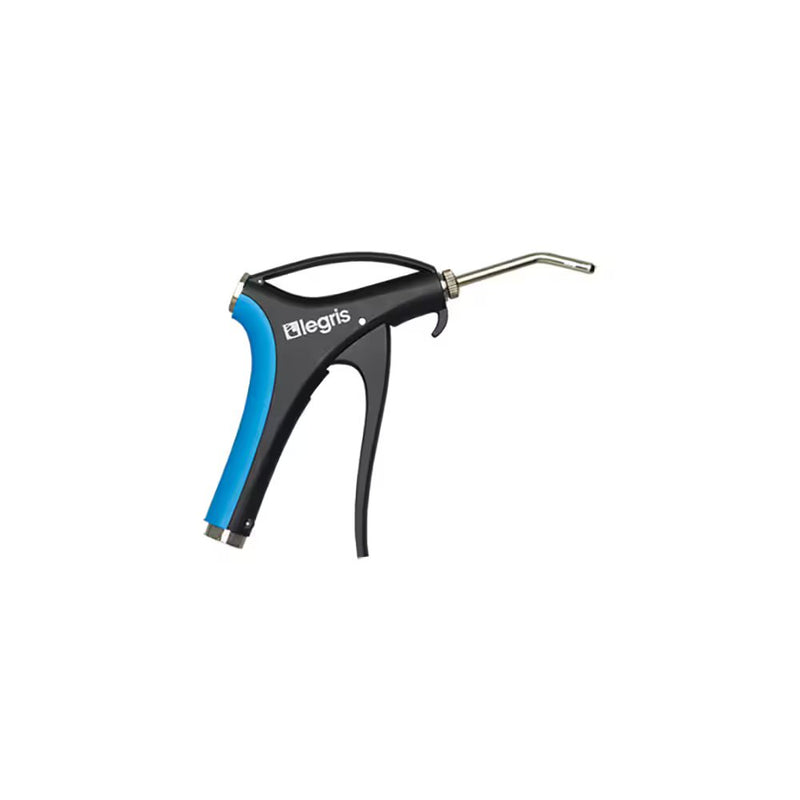

0656 66 13 by Parker | Legris Blowgun w/ Short Angled Nozzle | 1/4" Female BSPP Thread | 20 mm Hex | 228 mm Length | Short | Polymer | Pack of 5

$266.81 - $266.81

$266.81

$311.47

$311.47 - $311.47

$311.47

by Parker Hannifin
Value-Added Polymer Blowguns:0656 Progressive Control Blowgun, Lower Connection with Short Angled Nozzle, Female BSPP Thread

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 0656 66 13 Parker \| 5 \|
Shape (Orientation):	No Orientation
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Short

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 0 to 10 bar Working Temperature: Air: -15°C to +50°C Dry Air: -20°C to +80°C Tubes: Tubes and hoses
Advantages:	Basic & standard blowguns: In compliance with international noise and pressure regulations Swivel nozzles for directional jet Safety blowguns: Meets OSHA or SUVA standards according to model and complies with: - noise exposure requirements - provisions relating to outlet pressure Energy-saving blowguns Limited flow for lower energy consumption Kits and nozzles: to ensure a suitable product
Regulations:	RoHS PED REACH OSHA Protection of design: All designs and models of Parker Legris blowguns have been registered with the following numbers: 13 224 / 13 225 / 13 226 DI: 2003/10/CE Regulation relating to exposure to noise, particularly with regard to risks to hearing. The noise level must be less than 87 dBA.
Component Materials:	Body: Technical Polymer Connection: Nickel-Plated Brass Nozzle: - Aluminum (standard blowgun) - Nickel-Plated Brass (Safety and other blowguns) Trigger: Technical Polymer


Part Number	Diameter Nominal (DN)	C	F	H	H1	L	L1	Kg
0656 66 13	2.5 mm	1/4"	20 mm	117 mm	34 mm	147 mm	81 mm	.173 Kg

Nozzle: Nickel-Plated Brass
