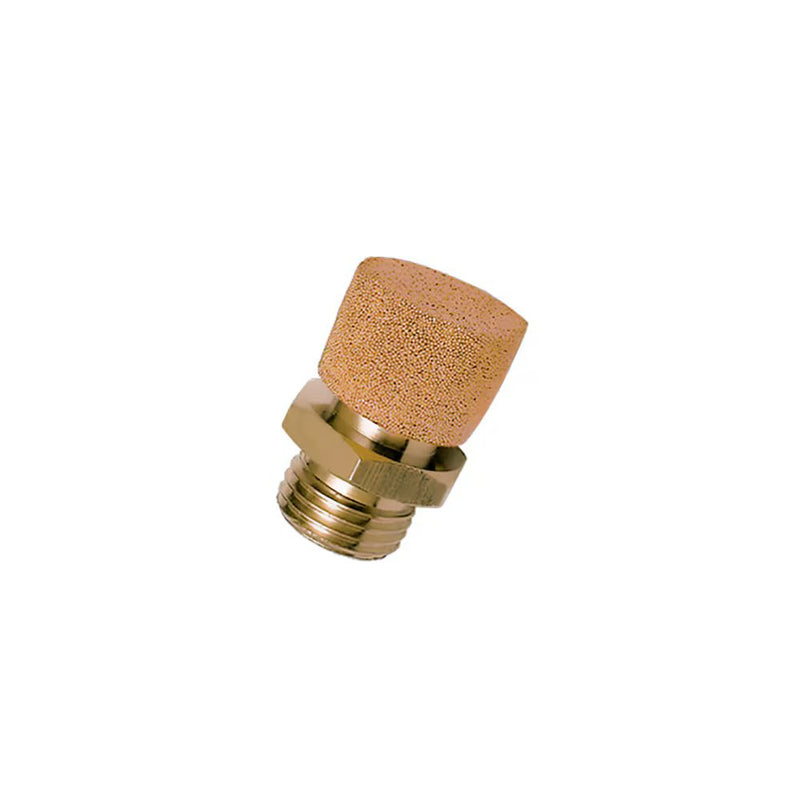

0672 00 10 by Parker | Legris Flow Control Silencer | 1/8" Male BSPP Thread | 27 mm Max Length | Brass | Pack of 10

Save $1.57

$86.64

$86.64 - $86.64

$86.64

$85.07

$85.07 - $85.07

$85.07

by Parker Hannifin
Silencers:0672 Flow Control Silencer, Male BSPP Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 0672 00 10 Parker \| 10 \|
Series:	0672 Series
Shape (Orientation):	No Orientation
Material(s):	Brass, Bronze
Special Properties:	Silicone Free

Technical Characteristics):	Compatible Fluids: Compressed air Working Pressure: Polyethylene: 0 to 10 bar Sintered bronze: 0 to 12 bar 316L Stainless Steel: 0 to 12 bar Working Temperature: Polyethylene: -10°C to +80°C Sintered bronze: -20°C to +150°C 316L Stainless Steel: -20°C to +180°C
Advantages:	3 materials available - Polyethylene: optimum exhaust flow rate and noise attention - Sintered bronze: robust and economic - 316L stainless Steel: increased chemical and mechanical resistance incorporated flow control regulator on 2 versions
Regulations:	RoHS PED REACH 2003/10/CE OSHA
Component Materials:	Body: Brass (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683) Silencer: Sintered Bronze (0670-0673-0675-0671-0677-0672) Polymer (0674-0676) Stainless Steel (0682-0683)

Part Number NPT (C) E F G H (Min) H (Max) H1 Wt (Oz) 0672 00 10 1/8" 8 mm 14 mm 14 mm 24 mm 27 mm 18 mm .012 Kg 0672 00 13 1/4" 8 mm 17 mm 17 mm 25 mm 28 mm 19 mm .023 Kg 0672 00 17 3/8" 10 mm 22 mm 22 mm 30 mm 33 mm 24 mm .033 Kg 0672 00 21 1/2" 12 mm 27 mm 27 mm 39 mm 42 mm 33 mm .044 Kg
