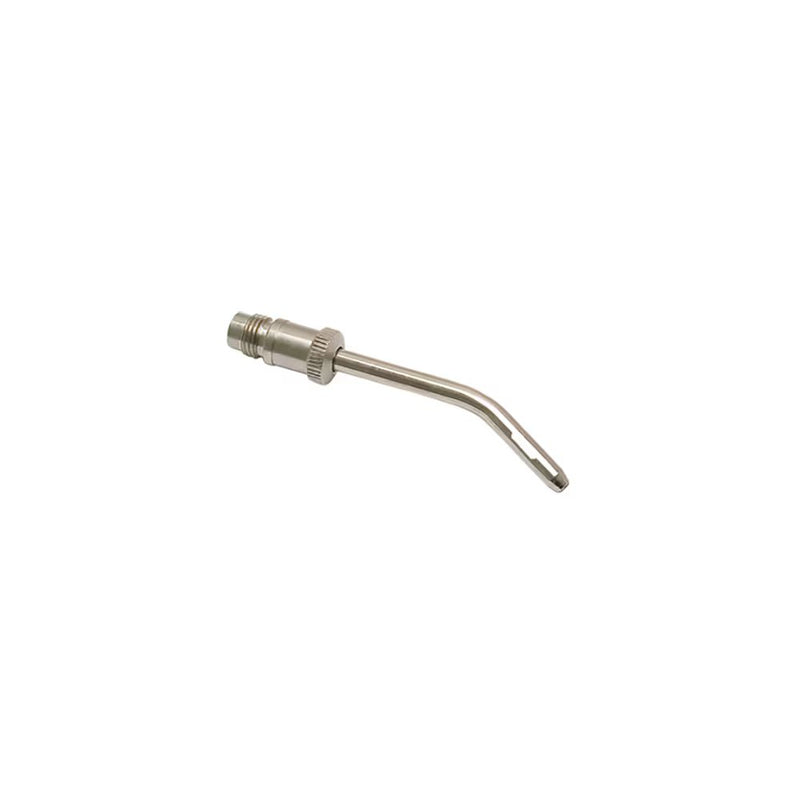

0690 06 00 by Parker | Legris Safety Angled Nozzle | M12x1.25 Male Metric Thread | 94 mm Length | 45° Elbow | Nickel-Plated Brass | Pack of 5

Save $2.09

$77.56

$77.56 - $77.56

$77.56

$75.47

$75.47 - $75.47

$75.47

by Parker Hannifin
Value-Added Polymer Blowguns:0690 06 Safety Angled Nozzle (Short)

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 0690 06 00 Parker \| 5 \|
Series:	0690 Series
Shape (Orientation):	45° Elbow
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Short

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 0 to 10 bar Working Temperature: Air: -15°C to +50°C Dry Air: -20°C to +80°C Tubes: Tubes and hoses
Advantages:	Basic & standard blowguns: In compliance with international noise and pressure regulations Swivel nozzles for directional jet Safety blowguns: Meets OSHA or SUVA standards according to model and complies with: - noise exposure requirements - provisions relating to outlet pressure Energy-saving blowguns Limited flow for lower energy consumption Kits and nozzles: to ensure a suitable product
Regulations:	RoHS PED REACH OSHA Protection of design: All designs and models of Parker Legris blowguns have been registered with the following numbers: 13 224 / 13 225 / 13 226 DI: 2003/10/CE Regulation relating to exposure to noise, particularly with regard to risks to hearing. The noise level must be less than 87 dBA.
Component Materials:	Body: Technical Polymer Connection: Nickel-Plated Brass Nozzle: - Aluminum (standard blowgun) - Nickel-Plated Brass (Safety and other blowguns) Trigger: Technical Polymer


Part Number	Diameter Nominal (DN)	C	G	L	L1	Kg
0690 06 00	2.5 mm	M12x1.25	15 mm	94 mm	70 mm	.033 Kg
