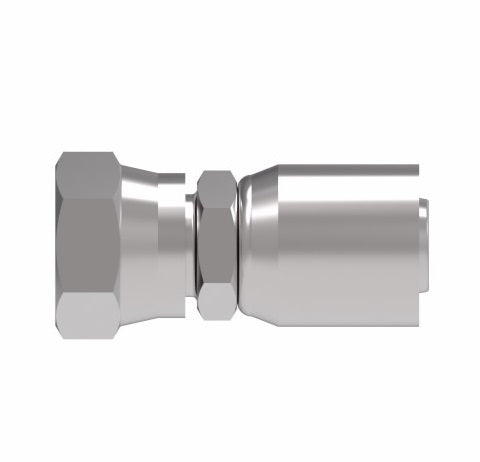

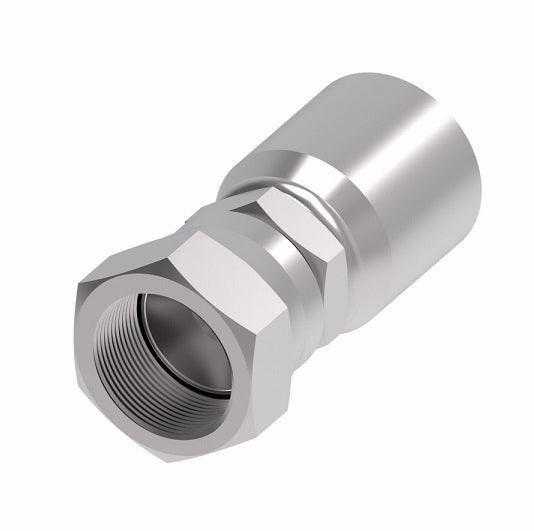

06E-06L Weatherhead by Danfoss | Everflex E Series | Female JIS 30° Flare Parallel Pipe Swivel Crimp Fitting | -06 Female JIS 30° Flare Parallel Pipe Swivel x -06 Hose Barb | Steel
06E-06L Weatherhead by Danfoss | Everflex E Series | Female JIS 30° Flare Parallel Pipe Swivel Crimp Fitting | -06 Female JIS 30° Flare Parallel Pipe Swivel x -06 Hose Barb | Steel
06E-06L Weatherhead by Danfoss | Everflex E Series | Female JIS 30° Flare Parallel Pipe Swivel Crimp Fitting | -06 Female JIS 30° Flare Parallel Pipe Swivel x -06 Hose Barb | Steel

06E-06L Weatherhead by Danfoss | Everflex E Series | Female JIS 30° Flare Parallel Pipe Swivel Crimp Fitting | -06 Female JIS 30° Flare Parallel Pipe Swivel x -06 Hose Barb | Steel

$34.84 - $34.84
$34.84
$34.84 - $34.84
$34.84

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Female JIS 30° Flare Parallel Pipe Swivel - Straight
Specifications for Variant SKU: 06E-06L Danfoss
Brand: Weatherhead
Series: Everflex E Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Female JIS, 3/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H009 Series  |   H243 Series  |   H275 Series  |   H277 Series  |   H285 Series
Applications:
  • General purpose low and medium pressure hydraulics.
  • Use H277 where shock hazards exist.
Pressure:
  • Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
  • Low carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H009, H243, H275, H277, H285
Warning:
  • For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only
Steel
Part Number		 Hose I.D. Tube Size Thread Size A Hose Cut-Off
Factor		 Hole Dia. Hex E Hex F
06E-06L 3/8" 3/8" G-3/8-19* 2.22" 1.25" 0.27" 11/16" 7/8"

* G as part of thread size is ISO designation for parallel thread.

Note: Drawings may differ from actual parts.
