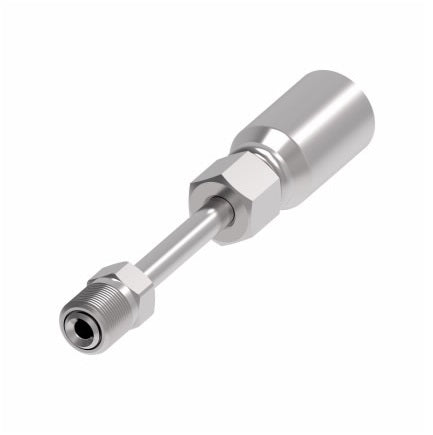

06E-B05 Weatherhead by Danfoss | Everflex E Series | Inverted Male Swivel Crimp Fitting | -05 Male Inverted Flare x -06 Hose Barb | Steel
06E-B05 Weatherhead by Danfoss | Everflex E Series | Inverted Male Swivel Crimp Fitting | -05 Male Inverted Flare x -06 Hose Barb | Steel
06E-B05 Weatherhead by Danfoss | Everflex E Series | Inverted Male Swivel Crimp Fitting | -05 Male Inverted Flare x -06 Hose Barb | Steel
06E-B05 Weatherhead by Danfoss | Everflex E Series | Inverted Male Swivel Crimp Fitting | -05 Male Inverted Flare x -06 Hose Barb | Steel

06E-B05 Weatherhead by Danfoss | Everflex E Series | Inverted Male Swivel Crimp Fitting | -05 Male Inverted Flare x -06 Hose Barb | Steel

$25.29 - $25.29
$25.29
$25.29 - $25.29
$25.29

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Inverted Male Swivel - Straight
Specifications for Variant SKU: 06E-B05 Danfoss
Brand: Weatherhead
Series: Everflex E Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Male Inverted Flare, 3/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: H009 Series  |   H243 Series  |   H275 Series  |   H277 Series  |   H285 Series
Applications:
  • General purpose low and medium pressure hydraulics.
  • Use H277 where shock hazards exist.
Pressure:
  • Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
  • Low carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • H009, H243, H275, H277, H285
Warning:
  • For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only
/td>
Steel
Part Number		 Hose I.D. Pipe Size Thread Size A Hose Cut-Off
Factor		 Hole Dia. Hex E Hex F
06E-B05 3/8" 5/16" 1/2-20 2.56" 1.63" 0.21" 9/16" 1/2"

Note: Drawings may differ from actual parts.
