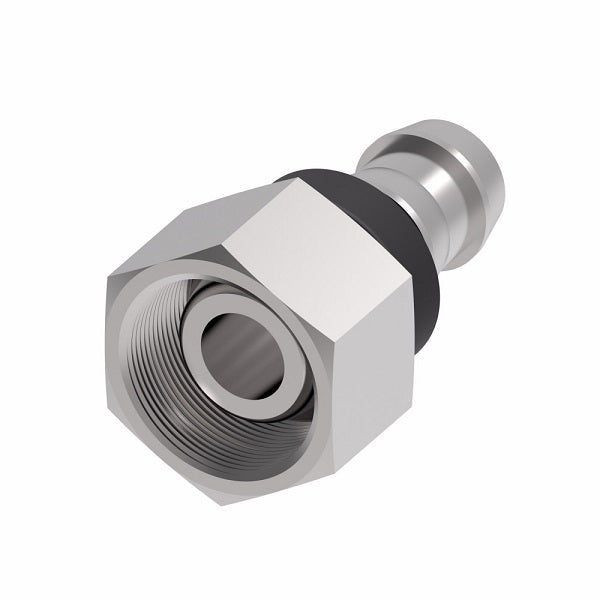

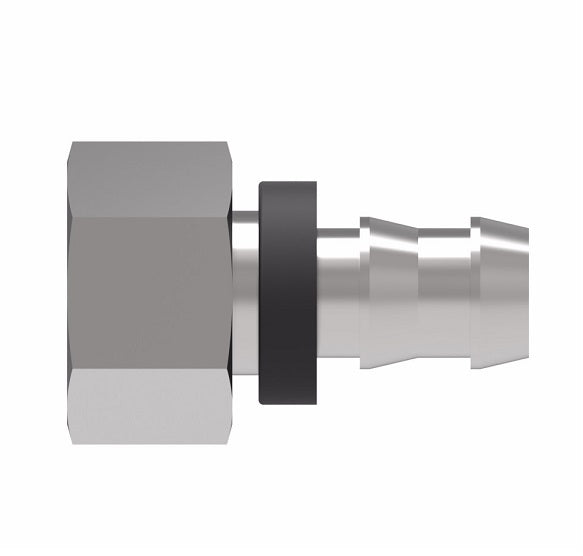

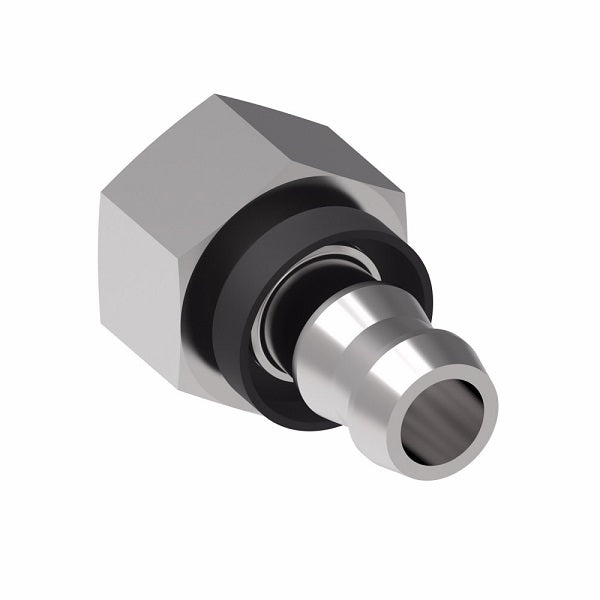

07.001-13-8 Aeroquip by Danfoss | Metric Female 24° Swivel DIN 3901/3902 Socketless Reusable Hose Fitting | L13 Female DKO/DIN x -08 Push-On Hose Barb | Steel

07.001-13-8 Aeroquip by Danfoss | Metric Female 24° Swivel DIN 3901/3902 Socketless Reusable Hose Fitting | L13 Female DKO/DIN x -08 Push-On Hose Barb | Steel

Name: 07.001-13-8 Aeroquip by Danfoss | Metric Female 24° Swivel DIN 3901/3902 Socketless Reusable Hose Fitting | L13 Female DKO/DIN x -08 Push-On Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 07.001-13-8 Danfoss
Price: 15.23 USD
Availability: InStock

$15.23 - $15.23

$15.23

$15.23 - $15.23

$15.23

Aeroquip® by Danfoss
Socketless (Push-On Hose Barb) Reusable Hose Fitting - Metric Female 24° Swivel DIN 3901/3902 - Straight

l.Rh.

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 07.001-13-8 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	L13 Female DIN, 1/2in Push-On Hose Barb
Material(s):	Steel
Compatible with the following Series:	2556 Series \| 2565 Series \| FC332 Series \| FC647 Series \| H201 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	RØ
07.001-13-8	-08	M22 x 1.5	1.67"	0.66"	0.39"	0.59"

* RØ is tube O.D. and refers to mating component when not called out on the illustration.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
