07.421-8-8 Aeroquip by Danfoss | Reusable Medium Pressure Hose Fitting | -08 Female BSPP Swivel x -08 Reusable Hose End | Carbon Steel

Name: 07.421-8-8 Aeroquip by Danfoss | Reusable Medium Pressure Hose Fitting | -08 Female BSPP Swivel x -08 Reusable Hose End | Carbon Steel
Brand: Danfoss/Eaton
SKU: 07.421-8-8 Danfoss
Price: 63.75 USD
Availability: InStock

$0.00 - $0.00

$0.00

$63.75

$63.75 - $63.75

$63.75

Aeroquip by Danfoss

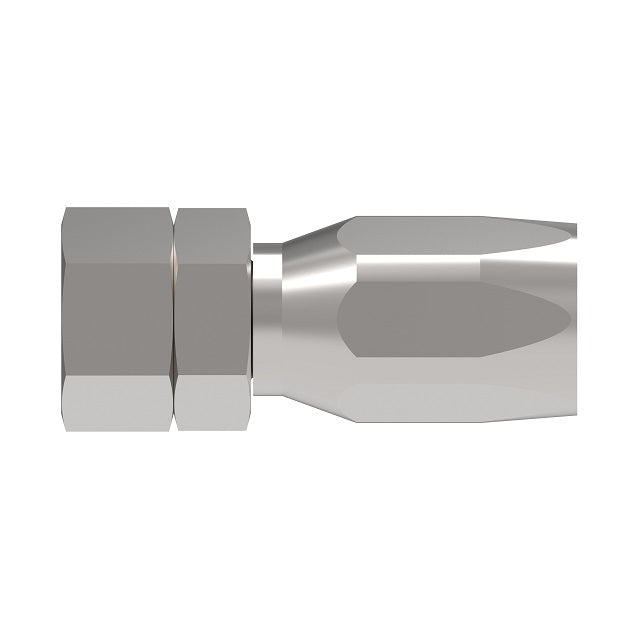

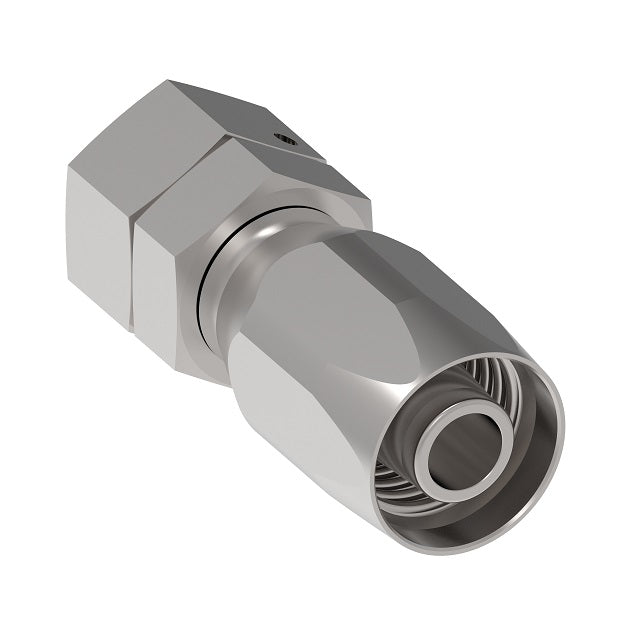

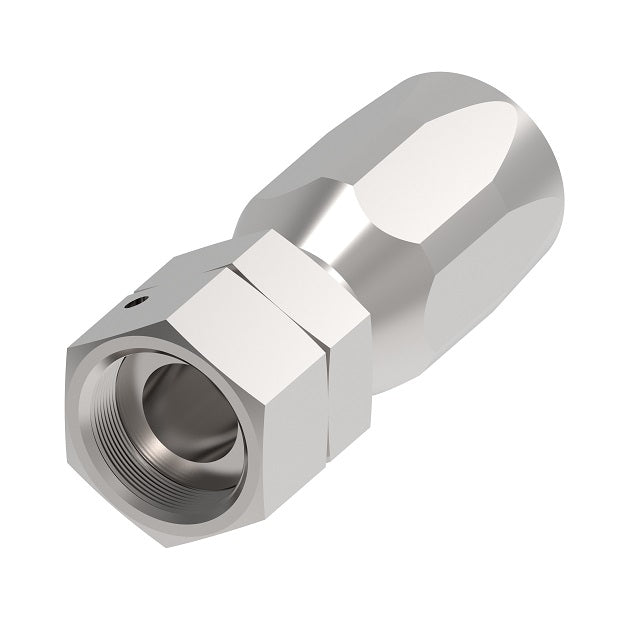

Reusable Medium Pressure Hose Fitting - Female BSPP Swivel - Straight

100R5 Style Reusable fitting.

Quantity

Specifications for Variant SKU: 07.421-8-8 Danfoss
Brand:	Aeroquip
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female BSPP, 1/2in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	302A Series \| 303 Series \| 2580 Series \| AE369 Series \| AE372 Series \| FC234 Series

Compatible Hose:
302A, 303, 2580, AE369, AE372, FC234


Part Number Carbon Steel	Thread	Hose Dash Size	A	D	EØ
07.421-6-6	1/4-19	-04	2.05"	1.30"	0.13"
07.421-8-8	1/2-14	-08	2.76"	1.59"	0.35"
07.421-10-10	5/8-14	-10	2.97"	1.69"	0.45"
07.421-12-12	3/4-14	-12	3.33"	1.75"	0.55"
07.421-16-16	1-11	-16	3.07"	1.79"	0.83"
07.421-32-32	2-11	-32	3.98"	2.13"	1.75"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
