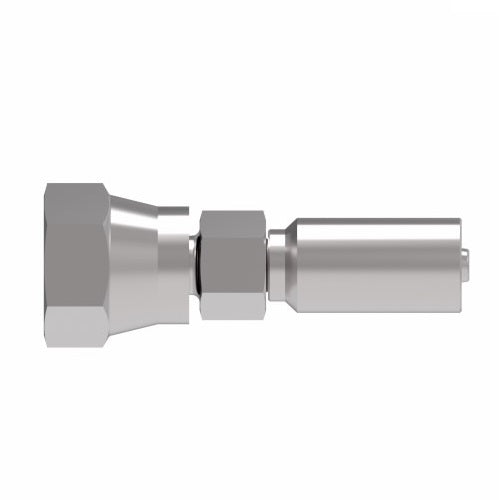

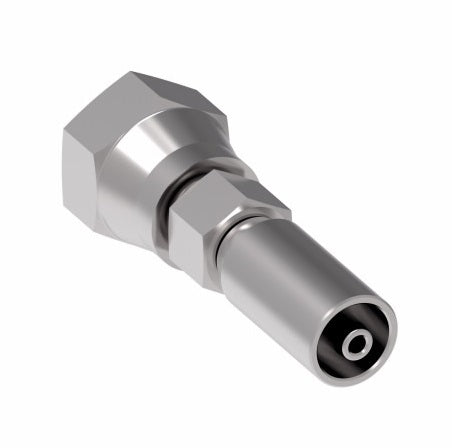

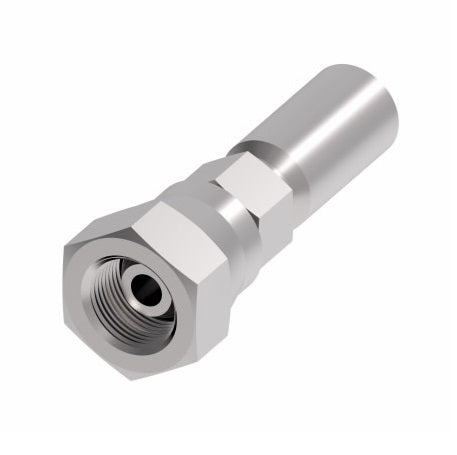

08E-358 Weatherhead by Danfoss | Everflex E Series | Female BSPP 60° Cone Swivel Crimp Fitting | -08 Female BSPP 60° Cone Swivel x -08 Hose Barb | Steel

08E-358 Weatherhead by Danfoss | Everflex E Series | Female BSPP 60° Cone Swivel Crimp Fitting | -08 Female BSPP 60° Cone Swivel x -08 Hose Barb | Steel

Name: 08E-358 Weatherhead by Danfoss | Everflex E Series | Female BSPP 60° Cone Swivel Crimp Fitting | -08 Female BSPP 60° Cone Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 08E-358 Danfoss
Price: 61.45 USD
Availability: InStock

$61.45 - $61.45

$61.45

$61.45 - $61.45

$61.45

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Female BSPP 60° Cone Swivel - Straight

Quantity

Specifications for Variant SKU: 08E-358 Danfoss
Brand:	Weatherhead
Series:	Everflex E Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female BSPP, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H009 Series \| H243 Series \| H275 Series \| H277 Series \| H285 Series

Applications:
General purpose low and medium pressure hydraulics. Use H277 where shock hazards exist.
Pressure:
Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
Low carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H009, H243, H275, H277, H285
Warning:
For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only


Steel Part Number	Hose I.D.	Tube Size	Thread Size	A	Hose Cut-Off Factor	Hole Dia.	Hex E	Hex F
04E-354	1/4"	1/4"	G-1/4-19*	2.07"	1.25"	0.16"	9/16"	3/4"
08E-358	1/2"	1/2"	G-1/2-14*	2.56"	1.50"	0.39"	13/16"	1"

* G as part of thread size is ISO designation for parallel thread.

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
