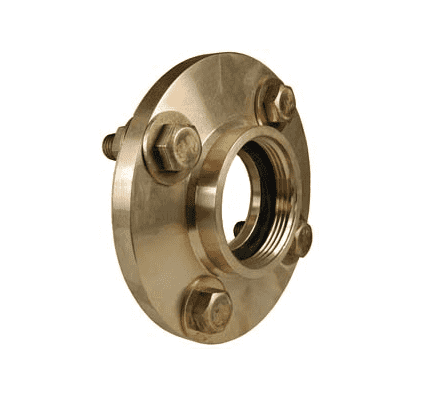

09-318-00001 Dixon Brass International Shore Connection - Shore Side

09-318-00001 Dixon Valve Brass International Shore Connection - Shore Side

Save $17.32 Save $17.32
$292.96
$292.96 - $292.96
$292.96
$275.64
$275.64 - $275.64
$275.64



Dixon Pipe & Welding Fittings - International Shore Connections - Brass
Specifications for Variant SKU: 09-318-00001 Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NST
Material(s): Brass
Application
  • Makes possible the connection of two different threads between ship and shore or between ships.
Features:
  • Meets US Coast Guard specifications for vessels 1000 gross tons or more
  • 7" OD brass flange with 4-3/4" holes
  • Solid wedge disc with tapered seats
  • Includes 8 washers, 4 hexagon brass nuts, 4 hex head bolts, 1 washer, 1 fiber gasket
  • Working pressure: 300 PSI
Part Number Description Weight (Lbs.)
09-318-00001 Shore Side 7.3800
09-319-00001 Ship Side 7.1400
WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
