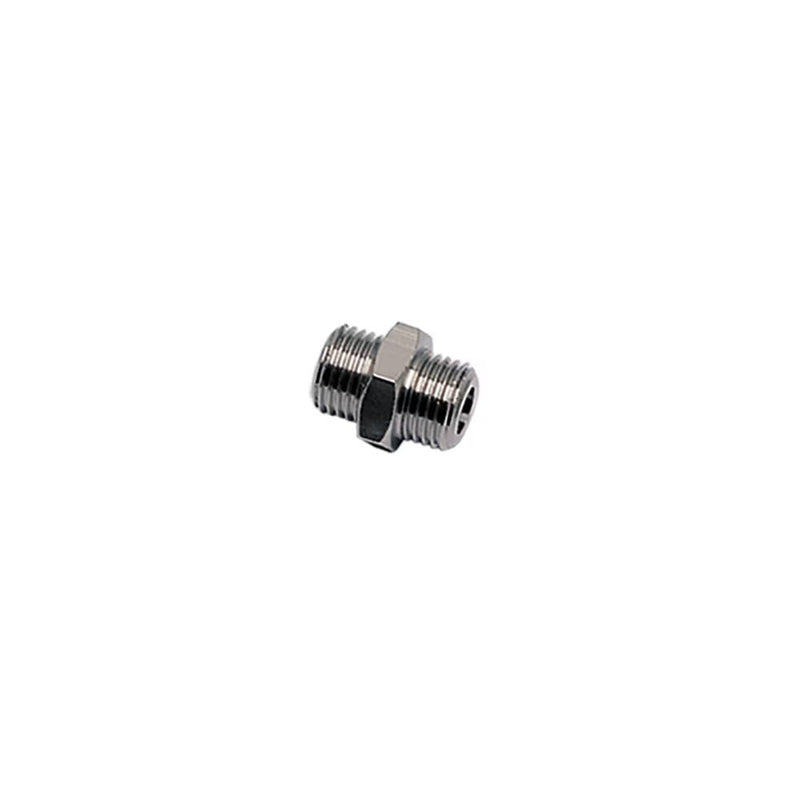

0901 13 17 by Parker | G1/4" Male BSPP Thread x G3/8" Male BSPP Thread | 19 mm Hex | 22 mm Length | Adapter | Straight | Nickel-Plated Brass

0901 13 17 by Parker | G1/4" Male BSPP Thread x G3/8" Male BSPP Thread | 19 mm Hex | 22 mm Length | Adapter | Straight | Nickel-Plated Brass | Pack of 50

Save $21.52 Save $21.52
$236.75
$236.75 - $236.75
$236.75
$215.23
$215.23 - $215.23
$215.23

by Parker Hannifin
Metric Adapters:0901 Male Straight Adapter M5 or BSPP

Package Quantity: 50 Units

Specifications for Variant SKU: 0901 13 17 Parker | 50 |
Series: 0901 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Special Properties: Reuseable
Product Features:
  • All brass construction
  • Nickel plated adapters
  • Robust design
  • Reusable
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
  • Factory/process automation
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
Temperature Range: Brass: 1/8" to 1/2": 2900 PSI (200 bar)
3/4" and 1": 2175 PSI (150 bar)
without sealing washer		 Nickel-Plated Brass: -76F to +302F (-60°C to +150°C)
without sealing washer
-4F to +34F (-20°C to +100°C)
with sealing washer
Pressure Range: Brass: 870 PSI (59.9 bar) Nickel-Plated Brass: +14F to +176F (-10°C to +80°C)
Part Number BSPP / M5 (C1) BSPP / M5 (C2) E E1 F L WT. KG
0901 00 19 M5 M5 4 mm 4 mm 8 mm 11.5 mm .002 KG
0901 19 10 M5 G1/8" 4 mm 6 mm 14 mm 14.5 mm .008 KG
0901 00 10 G1/8" G1/8" 6 mm 6 mm 14 mm 16.5 mm .008 KG
0901 10 13 G1/8" G1/4" 6 mm 8 mm 17 mm 19 mm .014 KG
0901 00 13 G1/4" G1/4" 8 mm 8 mm 17 mm 21 mm .016 KG
0901 13 17 G1/4" G3/8" 8 mm 9 mm 19 mm 22 mm .021 KG
0901 00 17 G3/8" G3/8" 9 mm 9 mm 19 mm 23 mm .024 KG
0901 00 21 G1/2" G1/2" - - 24 mm - .04 KG
0901 17 21 G3/8" G1/2" - - 24 mm - .037 KG
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
