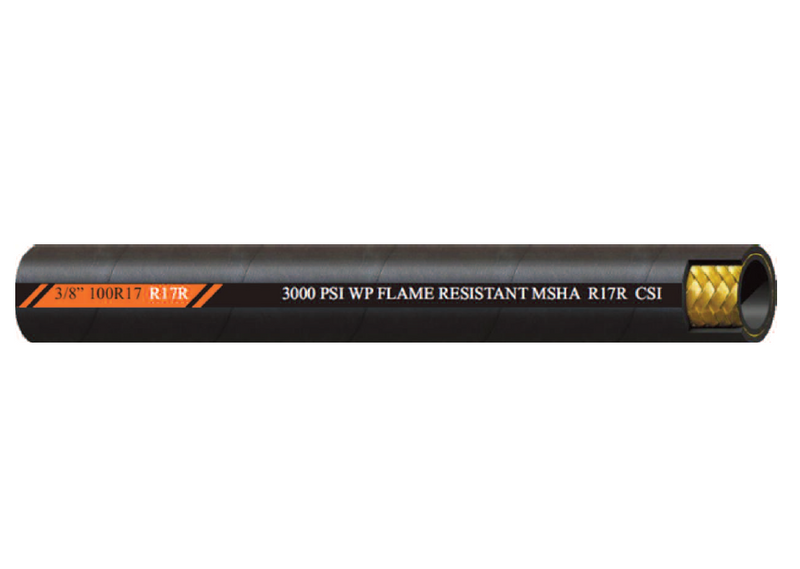

1/4" R17R Couplamatic Import 3000 PSI One Wire Hydraulic Hose (SAE 100R17) (1SN Dimension) - 1/4" ID - 500ft

1/4" R17R by Couplamatic | Import 3000 PSI | One Wire Hydraulic Hose | SAE 100R17 | 1SN Dimension | 1/4" ID | 500ft

Save $95.33 Save $95.33
$858.00
$858.00 - $858.00
$858.00
$762.67
$762.67 - $762.67
$762.67

Couplamatic Systems Inc.
One or Two Wire Braids Hoses - R17R Import 3000 PSI Constant Working Pressure Hydraulic Hose -(SAE 100R17) (1SN Dimension)

Package Quantity: 500 FT

Specifications for Variant SKU: 1/4" R17R Couplamatic | 500 |
Series: R17R Series
Hose Color(s): Black
Dash Size: -4
Internal Diameter: 0.25in
Outer Diameter: 0.53in
Applicable Specs & Approvals: Applicable MSHA Standards, SAE 100R17
Compatible with the following Series: Vari-Crimp Series  |   A Series  |   Grip Crimp Series
Applications: High Pressure Hydraulics, Industrial or Agricultural SAE Rating: SAE 100R17 (1SN DIMENSION)
Cover: Abrasion and Flame Resistant Cover, MSHA Approved Reinforcement: One (1/4"-3/8") or Two (1/2") Wire Braids
Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Reel Footage
1/4" R17R 1/4" 0.530" 3,000 lbs. 12,000 lbs. 2" 16 lbs. 500ft
3/8" R17R 3/8" 0.687" 3,000 lbs. 12,000 lbs. 3" 23 lbs. 500ft
1/2" R17R 1/2" 0.812" 3,000 lbs. 12,000 lbs. 3.5" 31 lbs. 350ft
Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
