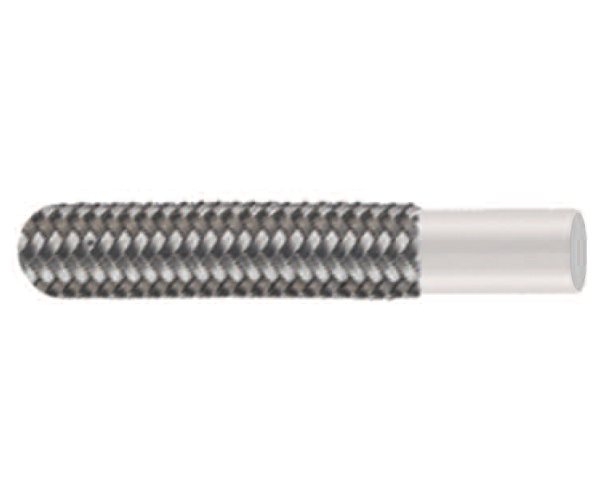

1/4" TR14 Couplamatic PTFE Hydraulic Hose - One Stainless Braid - 1/4" ID - Bulk

1/4" TR14 by Couplamatic | PTFE Hydraulic Hose | One Stainless Braid | 1/4" ID | 50ft Bulk Length

Save $18.38

$165.38

$165.38 - $165.38

$165.38

$147.00

$147.00 - $147.00

$147.00

Couplamatic Systems Inc.
One (3/16"-3/4") or Two (1") Stainless Braids - TR14 PTFE Hydraulic Hose - SAE 100R14

Quantity

Specifications for Variant SKU: 1/4" TR14 Couplamatic \| 50 \|
Series:	TR14 Series
Hose Color(s):	Metallic
Dash Size:	-4
Internal Diameter:	0.25in
Outer Diameter:	0.375in
Cover Construction:	304 Stainless Steel
Applicable Specs & Approvals:	SAE 100R14
Compatible with the following Series:	T Series

Applications:	Fuel, Lubricant, Steam, Hydraulic, & Compressed Gas	SAE Rating:	SAE 100R14
Cover:	304 Stainless Braid	Reinforcement:	One (3/16"-3/4") or Two (1") Stainless Braids
Temperature:	-65F to +400F (-54C to +204C), -100F to +500F (-73C to +260 C) Intermittent	Compatible Coupling Series:

Part Number	Hose ID	Hose OD	Working Pressure (lbs)	Min. Burst Pressure (lbs)	Min. Bend Radius	Weight per 100ft	Coil Footage
3/16" TR14	3/16"	0.312"	3,000 lbs.	12,000 lbs.	2.0"	5 lbs.	Bulk
1/4" TR14	1/4"	0.375"	3,000 lbs.	12,000 lbs.	3.0"	7 lbs.	Bulk
5/16" TR14	5/16"	0.445"	2,500 lbs.	10,000 lbs.	4.0"	11 lbs.	Bulk
3/8" TR14	3/8"	0.503"	2,250 lbs.	9,000 lbs.	4.5"	12 lbs.	Bulk
1/2" TR14	1/2"	0.648"	1,500 lbs.	6,000 lbs.	6.5"	15 lbs.	Bulk
3/4" TR14	3/4"	0.886"	1,100 lbs.	4,400 lbs.	8.2"	20 lbs.	Bulk
1" TR14	1"	1.135"	900 lbs.	3,600 lbs.	10.0"	30 lbs.	Bulk

Working pressure and Burst Pressure rated at room temperature.
