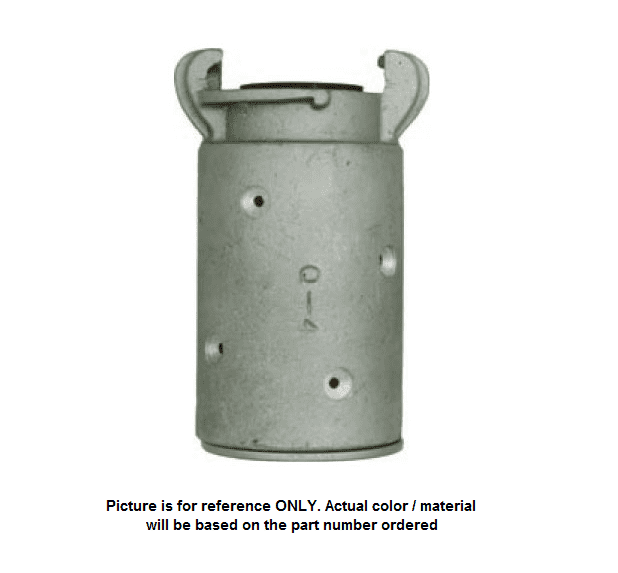

62901000 (10 CSB) by PT-Coupling | Sand Blast Coupling | Coupler x Hose Connection | 1" Size | 1.88" Hose OD | Brass

Save $2.80

$25.20

$25.20 - $25.20

$25.20

$22.40

$22.40 - $22.40

$22.40

Quantity

Specifications for Variant SKU: 62901000 PT-Coupling
Shape (Orientation):	Straight
Ends Configuration:	2-Lug Chicago, 1in Hose Barb
Material(s):	Brass

PRODUCT DESCRIPTION

PT Coupling - Special Application Fittings - Sand Blast Fittings - Part CSB - Quick Coupling Sand Blast Coupling x Hose Connection

Features & Applications:
Sand blast couplings are designed for use on sand blast hose. 110 PSI max. Pressure supplied with screws. Aluminum: Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Brass: Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
Sand Blast FIttings & Replacement Parts:
Sand Blast Fittings Replacement Parts for Sand Blast Fittings

Part Name	Item #	Material	Size	Cross Ref.	Hose OD
07-CSB	60900700	Aluminum	3/4"	Q1	1.50"
10-CSB	60901000	Aluminum	1"	Q2	1.88"
12-CSB	60901200	Aluminum	1-1/4"	Q3	2.16"
15-CSB	60901500	Aluminum	1-1/2"	Q4	2.38"

07-CSB	62900700	Brass	3/4"	Q1	1.50"
10-CSB	62901000	Brass	1"	Q2	1.88"
12-CSB	62901200	Brass	1-1/4"	Q3	2.16"
15-CSB	62901500	Brass	1-1/2"	Q4	2.38"

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
