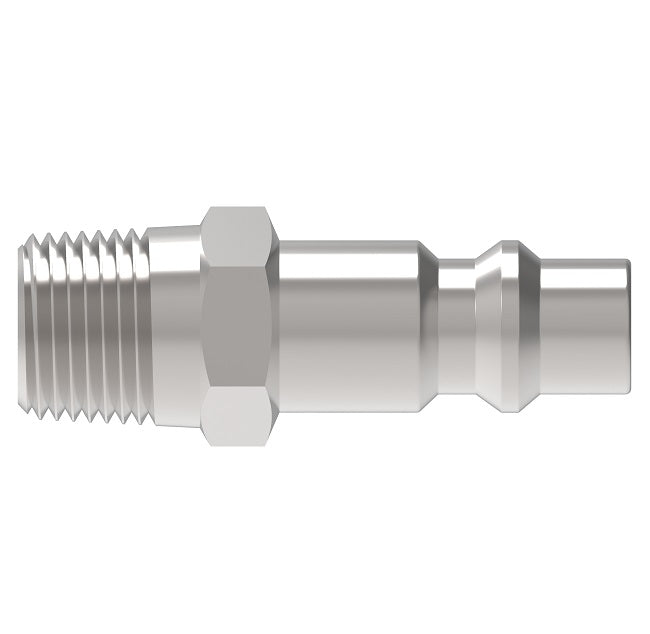

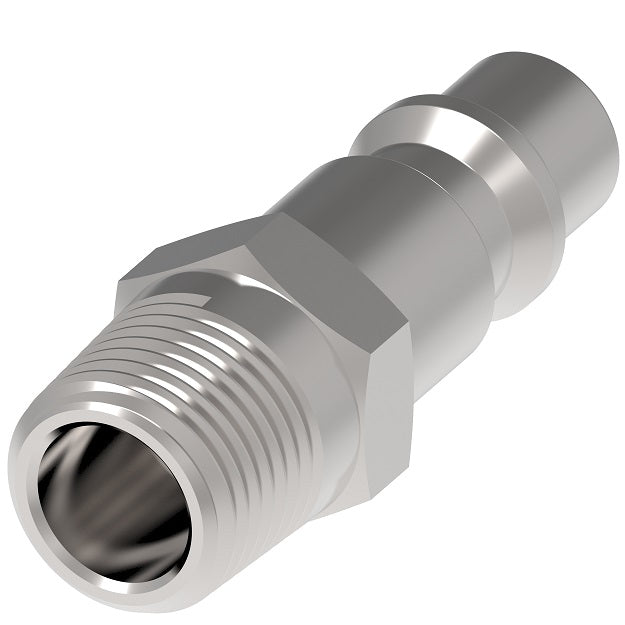

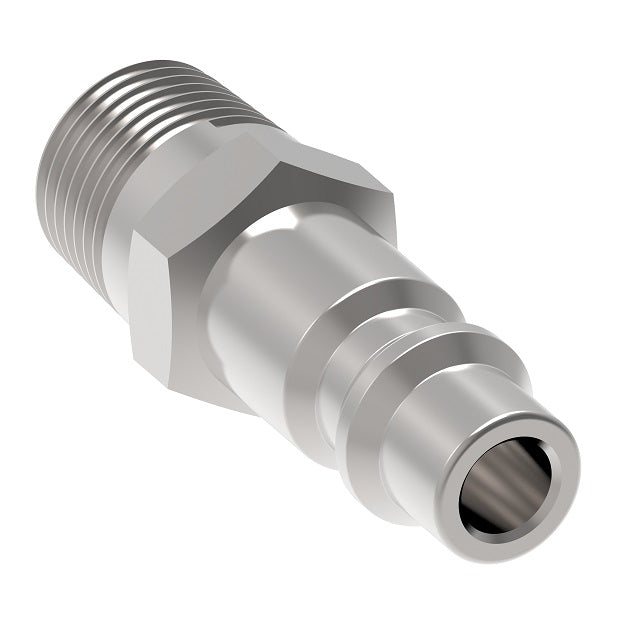

10 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series / 3000 Series | 1/4" Male NPTF x 1/4" Body Size | Plug | Steel
10 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series / 3000 Series | 1/4" Male NPTF x 1/4" Body Size | Plug | Steel
10 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series / 3000 Series | 1/4" Male NPTF x 1/4" Body Size | Plug | Steel
10 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series / 3000 Series | 1/4" Male NPTF x 1/4" Body Size | Plug | Steel

10 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 1000 Series / 3000 Series | 1/4" Male NPTF x 1/4" Body Size | Plug | Steel

$2.25 - $2.25
$2.25
$2.25 - $2.25
$2.25

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 1000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 1000/400/500 Series is an Industrial Interchange pneumatic coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.
Specifications for Variant SKU: 10 Danfoss
Brand: Hansen
Series: 1000 Series / 3000 Series
Shape (Orientation): Straight
Material(s): Zink-Plated Carbon Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Ball latching mechanism.
  • All sizes accept US Industrial Interchange.
Applications & Markets:
  • General Pneumatics
  • Construction
  • Industrial Plants
Materials:
  • Standard body material: Brass, Steel, Stainless Steel, Nickel Plated Steel Sleeve
  • Standard seal material: Nitrile (NBR)
Specifications:
  • 1/4" & 1/2" accept ISO 6150 B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
1000 1/4" 138 bar 2,000 psi 552 bar 8,000 psi 9 lpm 179 gpm
Interchangeability
All Sizes 1/4" & 1/2" 400 Series
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)		 Tru-Flate
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
1000 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex C D Hex
900 Socket/Female 1/4" 1/8" 1/8-27 Male NPTF Brass 1 1.97"
(50.04mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)		 - - -
1100 Socket/Female 1/4" 1/4" 1/4-18 Male NPTF Brass 1 2.16"
(54.86mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)		 - - -
1300 Socket/Female 1/4" 3/8" 3/8-18 Male NPTF Brass 1 2.12"
(53.85mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)		 - - -
LL1100 Socket/Female 1/4" 1/4" 1/4-18 Male NPTF Stainless Steel 1 2.16"
(54.86mm)		 1.00"
(25.40mm)		 0.69"
(17.53mm)		 - - -
1000 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex C D Hex
10 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Steel 2 - - - 1.75"
(44.45mm)		 0.62"
(15.75mm)		 0.56"
(14.22mm)
10C** Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Steel 2 - - - 1.75"
(44.45mm)		 0.65"
(16.51mm)		 0.56"
(14.22mm)
10G*** Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Steel 2 - - - 1.75"
(44.45mm)		 0.65"
(16.51mm)		 0.56"
(14.22mm)
12E Plug/Male 1/4" 1/8" 1/8-27 Male NPTF Steel 2 - - - 1.59"
(40.38mm)		 0.58"
(14.73mm)		 0.50"
(12.7mm)
12G*** Plug/Male 1/4" 1/8" 1/8-27 Male NPTF Steel 2 - - - 2.38"
(60.45mm)		 0.77"
(19.55mm)		 0.69"
(17.52mm)
14G*** Plug/Male 1/4" 3/8" 3/8-18 Male NPTF Steel 2 - - - 2.53"
(64.26mm)		 0.77"
(19.55mm)		 0.69"
(17.52mm)
B10 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Brass 2 - - - 1.75"
(44.45mm)		 0.62"
(16.25mm)		 0.56"
(14.22mm)
LL10 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Stainless Steel 2 - - - 1.75"
(44.45mm)		 0.62"
(16.51mm)		 0.56"
(14.22mm)
10NK Plug/Male 1/4 " 1/4" 1/4-18 Male NPTF Nickel Plated Steel 2 - - - 1.75"
(44.45mm)		 0.62"
(15.75mm)		 0.56"
(14.22mm)

**With Ball Check
***With Bleeder Ball Check - Reduces Hose Whip
