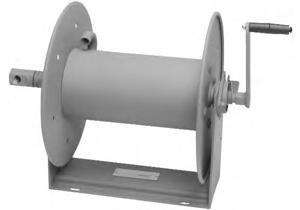

1020-14-16 by Hannay | #25-20 | 1000 Series | Compact Manual Rewind Reel

Save $33.70 Save $33.70
Original price $290.37
Original price $290.37 - Original price $290.37
Original price $290.37
Current price $256.67
$256.67 - $256.67
Current price $256.67

1000 Compact Manual Rewind Reels To handle single 1/4" or 3/8" I.D. hose.

Specifications for Variant SKU: 1020-14-16 Hannay
Series: 1000 Series
Applications:
  • Pressure Washing
  • Spray Operations
  • Washdown
  • Air
Features:
  • Lightweight.
  • Compact.
  • Direct crank rewind permanently attached.
  • Adjustable cam lock brake standard.
  • Standard inlet 90° ball bearing swivel joint 1/2" female NPT threads..
  • Standard outlet 3/8" female NPT threads.
  • Pressures to 3000 psi (207 bar)
  • Temperatures from +20 deg. F to +400 deg. F (-7 deg. C to +204 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1-1/4" 3/8"
O.D. (in) 5/8" 3/4" A B F X
1014-14-16 100' length 75' length 23 lbs. 8.12" 6" 19" 4"
1016-14-16 150' length 100' length 24 lbs. 10.12" 8" 21" 6"
1020-14-16 250' length 175' length 25 lbs. 14.12" 12" 25" 10"
Hannay Reels

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
