1000390 (100C) by PT-Coupling | Cam & Groove Fitting | Type C | 10" Coupler x 10" Hose Shank | Aluminum/HBS | Buna-N Seal

Save $722.61

$1,806.53

$1,806.53 - $1,806.53

$1,806.53

$1,083.92

$1,083.92 - $1,083.92

$1,083.92

PT Coupling

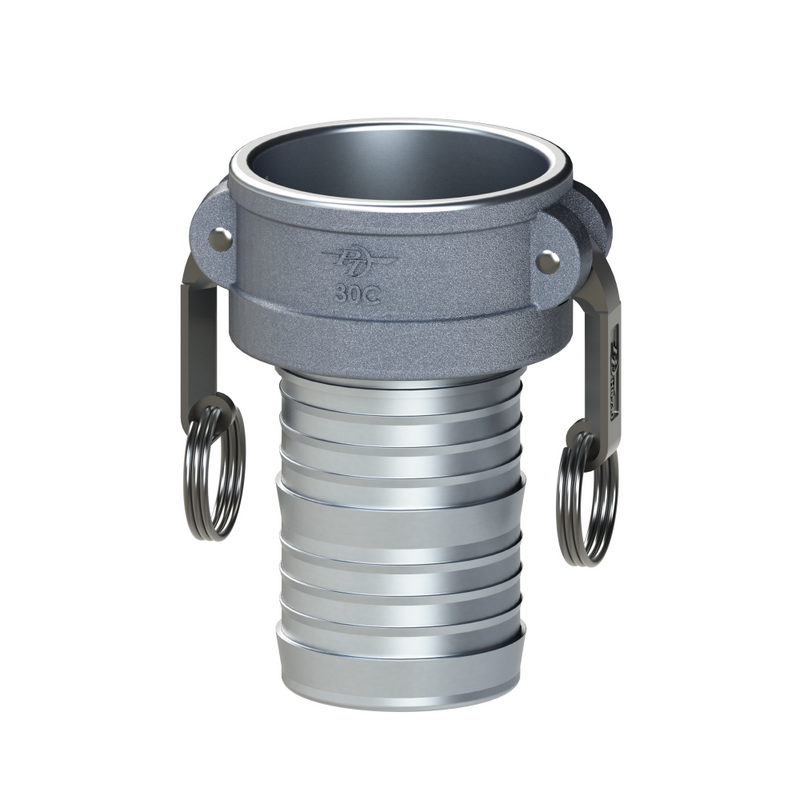

Cam and Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Aluminum/HBS | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 1000390 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	10in Female Cam & Groove, 10in Hose Barb
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
PT's specially designed multi-barbed shank with interlocking ring allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve. HBS cam arms are made of 300 series Stainless Steel. 8, 10 and 12 in. couplers are 4-cam designs with the STA-LOK® positive locking feature. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Coupler Size	Hose Shank Size	O.D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Min. Inside Diameter (E)	Engagement Length	Max. Allowable Working Press. (PSI)*	Weight
E05C	1000301	1/2"	1/2"	4.21"	1.82"	2.69"	1.25"	0.38"	0.33"	1.03"	250 PSI	0.215 lbs.
07C	1000307	3/4"	3/4"	4.51"	2.11"	3.55"	1.25"	0.53"	0.40"	0.97"	250 PSI	0.285 lbs.
10C	1000310	1"	1"	5.10"	2.44"	4.06"	1.56"	0.78"	0.69"	1.19"	250 PSI	0.409 lbs.
12C	1000312	1-1/4"	1-1/4"	6.86"	3.26"	4.44"	1.84"	0.97"	0.88"	1.44"	250 PSI	0.741 lbs.
15C	1000315	1-1/2"	1-1/2"	7.16"	3.56"	4.82"	1.88"	1.22"	1.15"	1.48"	250 PSI	0.844 lbs.
20C	1000320	2"	2"	7.54"	3.94"	5.53"	2.15"	1.71"	1.60"	1.75"	250 PSI	1.094 lbs.
25C	1000325	2-1/2"	2-1/2"	8.03"	4.43"	5.93"	2.18"	2.16"	2.06"	1.75"	200 PSI	1.524 lbs.
30C	1000330	3"	3"	9.56"	5.46"	6.32"	2.27"	2.65"	2.55"	1.84"	200 PSI	2.112 lbs.
40C	1000340	4"	4"	10.66"	6.56"	6.64"	2.34"	3.53"	3.43"	1.87"	150 PSI	3.307 lbs.
50C	1000350	5"	5"	11.67"	7.57"	7.24"	2.44"	4.53"	4.43"	1.97"	75 PSI	3.977 lbs.
60C	1000360	6"	6"	16.26"	10.16"	9.50"	2.70"	5.53"	5.43"	2.19"	75 PSI	6.955 lbs.
80C	1000380**	8"	8"	18.23"	12.13"	9.50"	2.72"	7.53"	7.38"	2.15"	50 PSI	11.141 lbs.
100C	1000390**	10"	10"	20.66"	14.56"	12.00"	3.20"	9.40"	9.20"	2.55"	50 PSI	19.171 lbs.
120C	1000392**	12"	12"	22.72"	16.62"	12.00"	3.30"	11.40"	11.30"	2.55"	50 PSI	22.021 lbs.

** 8, 10 and 12 in. couplers are 4-cam designs with the STA-LOK® positive locking feature.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.

Shop Parts by PT-Coupling
