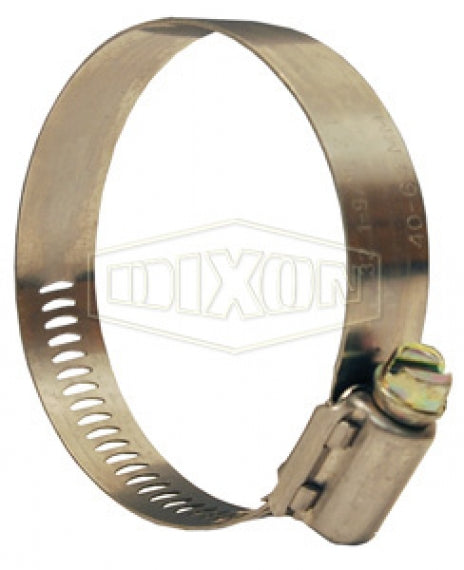

10040 by Dixon Valve | Style 100 | Aero-Seal® Worm Gear Clamp | 9/16" Band Width | Hose OD Range: from 2-1/16" to 3" | 300 Stainless Steel Band | Plated Carbon Steel Screw

10040 by Dixon Valve | Style 100 | Aero-Seal® Worm Gear Clamp | 9/16" Band Width | Hose OD Range: from 2-1/16" to 3" | 300 Stainless Steel Band | Plated Carbon Steel Screw | Box of 10

Save $2.38 Save $2.38
$21.45
$21.45 - $21.45
$21.45
$19.07
$19.07 - $19.07
$19.07

Dixon Valve
Aero-Seal® Worm Gear Clamps | Style 100


Package Quantity: 10 EA

Specifications for Variant SKU: 10040 Dixon | 10 |
Brand: Aero-Seal
Series: Style 100
Material(s): 300 Stainless Steel
Clamp Width: 0.5625
Minimum Clamp I.D.: 2.0625
Maximum Clamp I.D.: 3
Features:
  • Four-piece construction.
  • Slotted hex head screw design.
  • Heat treated screws have buttress thread type.
  • Band slots designed for strength and smooth action.
  • Saddle interlocks into embossed band to form a true concentric circle.
  • Safety collar or thumb screw available on the style 200-series only.
Materials:
  • Style 100
    • Band and housing: 300 Stainless Steel
    • Screw: Plated Carbon Steel
  • Style 200
    • Band and housing: 300 Stainless Steel
    • Screw: 410 Stainless Steel
  • Style 300
    • Band and housing: 300 Stainless Steel
    • Screw: 305 Stainless Steel
Note:
  • Suggested installation torque 30-42 in. lbs.; maximum recommended torque 60 in. lbs.
  • Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp.
Style 100
Part Number		 Style 200
Part Number		 Style 300
Part Number		 Band Width Hose OD
From To
10006 20006 30006 9/16" 7/16" 25/32"
10008 20008 30008 9/16" 1/2" 29/32"
10010 20010 30010 9/16" 9/16" 1-1/16"
10012 20012 30012 9/16" 11/16" 1-1/4"
10016 20016 30016 9/16" 13/16" 1-1/2"
10020 20020 30020 9/16" 13/16" 1-3/4"
10024 20024 30024 9/16" 1-1/16" 2"
10028 20028 30028 9/16" 1-5/16" 2-1/4"
10032 20032 30032 9/16" 1-9/16" 2-1/2"
10036 20036 30036 9/16" 1-13/16" 2-3/4"
10040 20040 30040 9/16" 2-1/16" 3"
10044 20044 30044 9/16" 2-5/16" 3-1/4"
10048 20048 30048 9/16" 2-9/16" 3-1/2"
10052 20052 30052 9/16" 2-13/16" 3-3/4"
10056 20056 30056 9/16" 3-1/16" 4"
10060 20060 30060 9/16" 3-5/16" 4-1/4"
