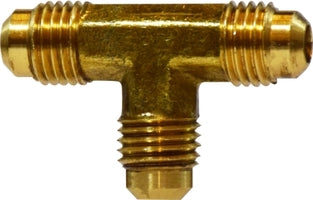

10163 (10-163) Midland SAE 45° Flare Fitting - Union Forged Tee - 5/8" Male SAE 45° Flare - Brass

10163 by Midland | SAE 45° Flare Fitting | Union Forged | 5/8" Male SAE 45° Flare | Tee | Brass

Save $1.04 Save $1.04
$9.36
$9.36 - $9.36
$9.36
$8.32
$8.32 - $8.32
$8.32

Midland Industries
Brass Fitting - SAE 45° Flare - Male Union Forged Tee - Brass

Inventory @ Manufacturers Warehouse: 1616 Units
Specifications for Variant SKU: 10163 Midland
Shape (Orientation): Tee
Ends Configuration: 5/8in Male SAE 45 Flare, 5/8in Male SAE 45 Flare, 5/8in Male SAE 45 Flare, Some Ends Match
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards, Applicable Military Standards

SPECIFICATIONS

Applications: LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. Used With: Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared.
SAE Rating: SAE# 010401 Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military standards).
Vibration: Good resistance - use long nut when greater vibration resistance is required. Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures
Tolerance: +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. Lead Free: Not Lead Free
Working Pressure Ranges:
  • Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 730F with copper tubing:
Assembly Instructions:
  • 1) Cut tubing to desired length. Make sure all burrs are removed and ends are cut square.
  • 2) Slide nut on tube. Threaded end "A" of nut must face out.
  • 3) Flare end of tube with a 450 flaring tool.
    • A) Measure flare diameter
    • B) Examine flare for excessive thin out.
  • 4) Lubricate threads and assemble to fitting body. Nut should be turned hand tight.
  • 5) Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn.
  • Note: Do not over-torque as it may damage the fitting or split the tubing at the flare.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size B 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-16 3/4-16 7/8-14 1-1/16-14
Crossover Series:
44F 404 244 244F T2 144F
Part Number Male SAE 45° Flare A Body Size Approx. Weight
(Lbs.)
10157
(10-157)		 1/8" 0.67" 0.36" 0.04
10158
(10-158)		 3/16" 0.75" 0.36" 0.06
10159
(10-159)		 1/4" 0.78" 0.36" 0.06
10160
(10-160)		 5/16" 0.91" 0.44" 0.10
10161
(10-161)		 3/8" 1.00" 0.44" 0.12
10162
(10-162) 		1/2" 1.16" 0.59" 0.19
10163
(10-163)		 5/8" 1.41" 0.69" 0.30
10164
(10-164)		 3/4" 1.64" 0.88" 0.53
10165
(10-165)		 7/8" 1.75" 1.25" 0.93
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.

Shop Parts by Midland Industries
