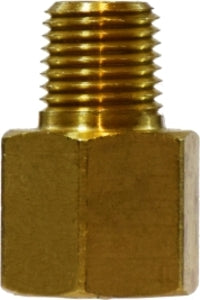

10441 (10-441) Midland SAE 45° Flare Fitting - Female Flare Adapter - 1/4" Female SAE 45° Flare x 1/4" Male NPTF - Brass

10441 by Midland | SAE 45° Flare Fitting | Female Flare | 1/4" Female SAE 45° Flare x 1/4" Male NPTF | Adapter | Brass

Save $0.51 Save $0.51
$4.60
$4.60 - $4.60
$4.60
$4.09
$4.09 - $4.09
$4.09

Midland Industries
Brass Fitting - SAE 45° Flare - Female Flare Adapter - Brass

Inventory @ Manufacturers Warehouse: 1595 Units
Specifications for Variant SKU: 10441 Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Female SAE 45 Flare, 1/4in Male NPTF
Material(s): Brass
Applicable Specs & Approvals: Applicable ASA Standards, Applicable ASME Standards, Applicable SAE Standards, Applicable Military Standards
Applications: LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems. Used With: Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared.
SAE Rating: SAE# 010106 Conformance: Meets specifications and standards of ASA, ASME, SAE and MS (Military standards).
Vibration: Good resistance - use long nut when greater vibration resistance is required. Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures
Tolerance: +/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical. Lead Free: Not Lead Free
Working Pressure Ranges:
  • Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 730F with copper tubing:
Assembly Instructions:
  • 1) Cut tubing to desired length. Make sure all burrs are removed and ends are cut square.
  • 2) Slide nut on tube. Threaded end "A" of nut must face out.
  • 3) Flare end of tube with a 450 flaring tool.
    • A) Measure flare diameter
    • B) Examine flare for excessive thin out.
  • 4) Lubricate threads and assemble to fitting body. Nut should be turned hand tight.
  • 5) Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn.
  • Note: Do not over-torque as it may damage the fitting or split the tubing at the flare.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size B 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-16 3/4-16 7/8-14 1-1/16-14
Crossover Series:
664 U5 664FHD 33 48-FF
Part Number Female Flare x Male NPTF A Hex Approx. Weight
(Lbs.)
10440
(10-440)		 1/4" x 1/8" 0.91" 0.62" 0.05
10441
(10-441)		 1/4" x 1/4" 1.01" 0.62" 0.06
10442
(10-442)		 3/8" x 1/4" 1.28" 0.81" 0.10
10438 3/8" x 1/2" - - -
10443
(10-443)		 1/2" x 3/8" 1.36" 0.94" 0.14
10444
(10-444)		 1/2" x 1/2" 1.46" 0.94" 0.14
10439 5/8" x 1/2" - - -
